Back Probe TP-BP85 Thin and flexible probes to connect to hard to reach places.
The Back Probe TP-BP85 is a thin and flexible back probe. The back probe can be used on any measuring lead with 4 mm banana jacks. The long, thin and flexible tip makes it possible to connect to hard to reach places.
The Back Probe TP-BP85 - Set comes in a set containing 8 back probes, four black ones, a red one, a yellow one, a green one and a blue one. Back probes can also be ordered individually.
Back Probe TP-BP85 key specifications
| Back Probe TP-BP85 |
|---|
| 4 mm banana socket |
| 1000 V CATIII |
| 0.6 mm pin diameter |
| 85 mm in length |
Models
The Back Probe TP-BP85 is available in 5 different colors or in one set of 8:
| Order code | |
|---|---|
| TP-BP85-Set | |
| TP-BP85-Red | |
| TP-BP85-Green | |
| TP-BP85-Blue | |
| TP-BP85-Yellow | |
| TP-BP85-Black |
Package contents
The Back Probe TP-BP85 - Set is delivered with:
| Amount | Item |
|---|---|
| 1 | Back Probe TP-BP85 - Red |
| 1 | Back Probe TP-BP85 - Green |
| 1 | Back Probe TP-BP85 - Blue |
| 1 | Back Probe TP-BP85 - Yellow |
| 4 | Back Probe TP-BP85 - Black |
Back Probe TP-BP85 in use
The Back Probe TP-BP85 is very useful in back probing connectors to measure in an existing circuit without having to use a break out box or damage the wire isolation. The long, thin and flexible pins can easily be slided between the connector housing and the contacts in the connector.
Figure 1 shows the Back Probe TP-BP85 in use on a sensor measurement and figure 2 shows the Back Probe TP-BP85 in use with the Automotive scope ATS5004D and Measure lead TP-C1812B.

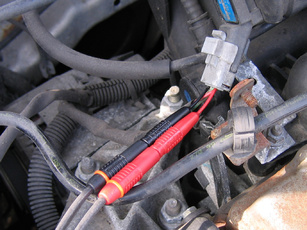

Figure 1: Back probes in use on a sensor measurement.

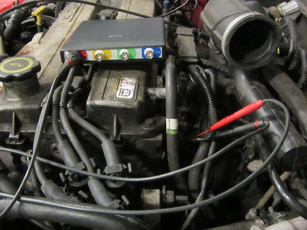

Figure 2: Back probes in use with Lab scope and Measure leads.
Back Probe TP-BP85 specifications
The table below shows detailed specifications of the Back Probe TP-BP85.
| Each back probe | |
|---|---|
| Connector | 4 mm banana socket |
| Rated voltage | 1000 V |
| Dimensions | |
| Length | 85 mm |
| Width | 9 mm |
| Tip | |
| Diameter | 0.6 mm |
| Total length | 45 mm |
| Unisolated length | 25 mm |
| Weight | 4 g |
| Color | black, red, yellow, green or blue |
Related products
The Back Probe TP-BP85 can be used together with various instruments and measure leads.
-
Handyscope HS4 DIFF
-
Handyprobe HP3
-
Automotive scope ATS5004D
-
Measure lead TP-C812A
-
Measure lead TP-C812B
-
Measure lead TP-C1812B
-
Automotive Diagnostics Kit
