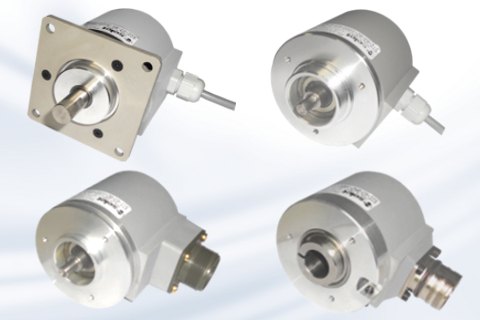

63 mm diameters series
SA063 - 63 mm diameter series - Square flange
- Flange type: Square flange
- Code versions: Binary - Gray - Decimal
- Resolutions: 64 - 120 - 128 - 256 - 360 - 720 - 1024 - 2048 - 4096
- Electronics: EA = PUSH-PULL, EAP = PUSH-PULL protetto
- Power supply: 1 = 5 Vcc, 9 = 11 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MAA = 19-pins straight military connector - MAR = 19-pins angled military connector
- Shaft diameter: 8 - 9 - 10 - 12 mm
- IP protection: IP54 - IP65 - IP67
- Flange type: Servo mounting
- Code versions: Binary - Gray - Decimal
- Resolutions: 64 - 120 - 128 - 256 - 360 - 720 - 1024 - 2048 - 4096
- Electronics: EA = PUSH-PULL, EAP = PUSH-PULL protetto
- Power supply: 1 = 5 Vcc, 9 = 11 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MAA = 19-pins straight military connector - MAR = 19-pins angled military connector
- Shaft diameter: 8 - 9 - 10 - 12 mm
- IP protection: IP54 - IP65 - IP67
- Flange type: Screw mounting, 3 holes at 120° on Ø 20 mm
- Code versions: Binary - Gray - Decimal
- Resolutions: 64 - 120 - 128 - 256 - 360 - 720 - 1024 - 2048 - 4096
- Electronics: EA = PUSH-PULL, EAP = PUSH-PULL protetto
- Power supply: 1 = 5 Vcc, 9 = 11 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MAA = 19-pins straight military connector - MAR = 19-pins angled military connector
- Shaft diameter: 8 - 9 - 10 - 12 mm
- IP protection: IP54 - IP65 - IP67
- Flange type: Hollow shaft
- Code versions: Binary - Gray - Decimal
- Resolutions: 64 - 120 - 128 - 256 - 360 - 720 - 1024 - 2048 - 4096
- Electronics: EA = PUSH-PULL, EAP = PUSH-PULL protetto
- Power supply: 1 = 5 Vcc, 9 = 11 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MAA = 19-pins straight military connector - MAR = 19-pins angled military connector
- Shaft diameter: 8 - 9 - 10 - 12 - 14 - 15 mm
- IP protection: IP54 - IP65 - IP67
63 mm diameters series
SA063 - 63 mm diameter series - Square flange
SA163 - 63 mm diameter series - Servo mounting
SA263 - 30 mm diameter series - Screw mounting, 3 holes at 120° on Ø 20 mm
SAC63 - 63 mm diameter series - Hollow shaft
-
