80 mm diameter series

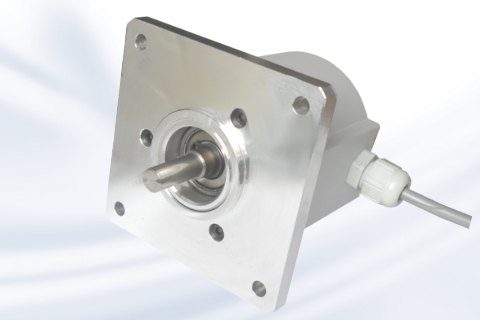

SI080 - 80 mm diameter series - Square flange
- Flange type: 80 x 80 mm square flange
- Monodirectional and bidirectional version with and without zero
- Resolution up to 10.000 pulses
- Electronics: OCN = open collector NPN, OCP = open collector PNP, SN = NPN, SP = PNP, EA = PUSH-PULL, EAP = PUSH-PULL protetto, E2A = PUSH-PULL - LINE DRIVER, E2AP = PUSH-PULL - LINE DRIVER protetto, CL = Line driver TTL, CD = Line driver CMOS
- Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc, 3 = 8 ÷ 15 Vcc, 6 = 5 ÷ 26 Vcc, 7 = 24 Vcc (uscita 5 Vcc), 9 = 11 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MP3A = 4-pins solenoid connector - MA = 7-pins straight military connector - MR = 7-pins angled military connector - M1A = 10-pins straight military connector - M1R = 10-pins angled military connector
- Shaft diameter: 6 - 8 - 9 - 10 - 11 - 12 mm
- IP protection: IP54 - IP65 - IP67
