INTRAOPTO tecnology高分辨率增量编码器 订购编号:
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

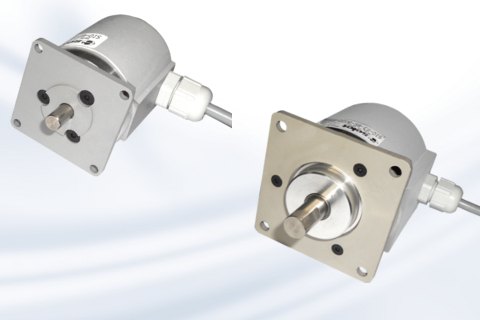

INTRAOPTO tecnology with high resolution series
SI040 INTRA - 40 mm diameter series - Square flange - Resolution up to 25.000 rpm
- Flange type: 40 x 40 mm square size
- Bidirectional version with zero
- Resolution up to 25.000 pulses
- Electronics: E2A = PUSH-PULL - LINE DRIVER, CL = Line driver TTL
- Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MP3A = 4-pins solenoid connector - VA = 9-pins straight pan connector - VR = 9-pins angled pan connector
- Shaft diameter: 4 - 5 - 6 - 8 mm
- IP protection: IP54 - IP65 - IP67
- Flange type: Square flange
- Bidirectional version with zero
- Resolution up to 100.000 pulses
- Electronics: E2A = PUSH-PULL - LINE DRIVER, CL = Line driver TTL
- Power supply: 1 = 5 Vcc, 2 = 10 ÷ 30 Vcc
- Versions: CA= Straight cable L = 3 m - CR= Angled cable L = 3 m - MP3A = 4-pins solenoid connector - MA = 7-pins straight military connector - MR = 7-pins angled military connector - M1A = 10-pins straight military connector - M1R = 10-pins angled military connector
- Shaft diameter: 6 - 8 - 9 - 10 mm
- IP protection: IP54 - IP65 - IP67
INTRAOPTO tecnology with high resolution series
SI040 INTRA - 40 mm diameter series - Square flange - Resolution up to 25.000 rpm
SI063 INTRA - 63 mm diameter series - Square flange - Resolution up to 100.000 rpm
