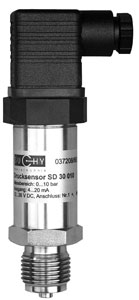

Pressure sensors, industrial - heavy duty
- with internal diaphragm
|
Accuracy 0,25 % and 0,5 % Standard output 4...20 mA; 2-wire system or 0...20 mA; 3-wire system or 0...5 VDC; 3-wire system or 0...10 VDC; 3-wire system Features - High overload protection - Corrosion resistant, stainless steel design - Highly resistant to shock and vibration - Good reproducibility Applications - Development and laboratory - Process engineerin - Plant and apparatus construction - Hydraulics and pneumatics |
 |
| Model | SD-30 | SD-32 | |
| Accuracy | 0,5 % of full scale value | 0,25 % of full scale value | |
|
Ranges in bar |
0...0,1, ...0,25, ...0,4, ...0,6, 1, 1,6, 2,5, 4, 6, 10, 16, 25, 40, 60, 100, 160, 250, 400, 0...600, 1.000, 1.600, 2.500, 4.000 -0,6/0, -1/0, -1/+0,6, -1/+1,5, -1/+3, -1/+5, -1/+9, -1/+15, -1/+24 |
||
| Overload limit |
< 16 bar - 2,0 x from 25 to 600 bar - 2,0 x > 600 bar - 1,5 x |
||
| Sensor element | from 0,1 to 16 bar piezoresistive, over 25 bar in Thin film | ||
| Repeatability | < 0,05 % of full scale vlue | ||
| Stability per year | < 0,2 % of full scale value in rated conditions | ||
| Case | CrNi steel | ||
| Wetted parts | CrNi steel | ||
| Pressure connection | SW 27, CrNi steel | ||
| Electrical connection | plug according to DIN 43650 with junction box | ||
| Power supply | 10...30 VDC (14...30 VDC for output 0...10 V) | ||
| Power consumption | Output 4...20 mA: signal current voltage output 8 mA | ||
| Temp.comp.range | 0...80°C | ||
| Temp. influence | 0,2 % / 10 K, zero point and measuring element | ||
| Response time | (within 10% to 90% of full scale value) | ||
| Protection | IP 65 nca. to EN 60529 / IEC 529 | ||
| Temperaturens | Medium: -30°C to 100°C, environment: -20°C bis 80°C | ||
| Weight | 0,2 kg | ||
