404 961 (DCK31)

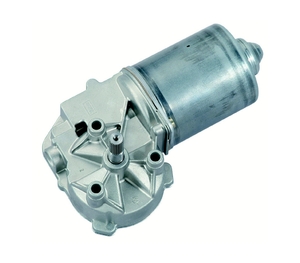

Motor picture 404 961

Technical description

Motorhousing deep drawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic, bronze

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or leads with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Door & gate openers, pumps, lubricating technology, appliance, linear actuators

Automotive:

Trunk & tailgate opening & closing


Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Ball - B:Sleeve

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 2
Nominal speed [min-1] nN 147.692
Nominal power [W] PN 30.933
Nominal current [A] IN 4
Nominal force [kN] FN 0

Sensor data

Pulses   1
Output channels   2

Other data

Gear ratio   53/2
Gear wheel material   plastic
Suppression components   6µH,1nF
Enclosure class   IP 30
Weight   1.21

Remarks

d= for thread forming screw M6 DIN ISO 965-2

Connector layouts

Connector layout K 320

Description

Flat plug (DIN 46244) 6,3x0,8 mating with receptacle housing part#180907, drwg# C-180907& Receptacles for tabs, conductor cross section 0,5-1,5 sqmm (20-18AWG) part# 925603-x, drwg# 925603 www.tycoelectronics.com

Characteristic curves

Characteristic Curve 404961

Description

No description available

Drawing

Drawing 0266 AL

Shafts

Output shaft drawing W 333

Description

I serration (rolled):  No teeth 28, pitch circle dia 9 mm, tip circle dia 9.6 mm, root circle dia 8.26 mm space width angle 60° - go/no go gauge Frenco 33906 - www.frenco.de

Wiring diagrams

Wiring diagram S 30
