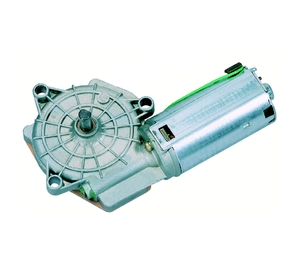

Motor picture

Motor picture 404003

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic or resinbonded fabric

Lubrication grease

Mechanical interface output shaft

Electric interface connector or leads with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

General machine construction

Automatic machines

Agricultural technology

Business machines

Laboratory appliances

Medical appliances

Traffic & communications technology

Photographic/optical equipment

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 2
Nominal speed [min-1] nN 42.857
Nominal power [W] PN 8.976
Nominal current [A] IN 2.5
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   99/1
Gear wheel material   Resinbonded fabric
Suppression components
Enclosure class
Weight   0.71

Remarks

d = M6, Ball bearing

Connector layouts

Connector layout K156

Description

I:  Housing RDST OCE: 2645082
II: Pins RD             OCE: 2642354

Characteristic curves

Characteristic Curve 404003

Drawing

Drawing 0223BR

Shafts

Output shaft drawing W171
Output shaft drawing W207

Wiring diagrams

Wiring diagram S 28
