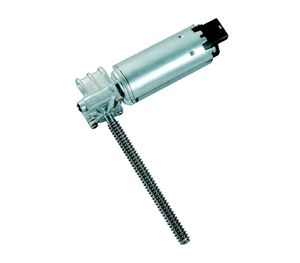

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic

Lubrication grease

Mechanical interface steel lead screw

Electric interface connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Home automation

Automotive:

Seat tilt and height adjustment

Design Data

Commutation		Brushed
Direction of rotation		Bi-directional
Bearing type		A: Sleeve - B: Sleeve

Performance data

Rated voltage [V]	UN	12
Nominal torque [Nm]	MN	1.5
Nominal speed [min-1]	nN	105.455
Nominal power [W]	PN	16.565
Nominal current [A]	IN	6
Nominal force [kN]	FN	1.5

Sensor data

Pulses		0
Output channels		0

Other data

Gear ratio		29/1
Gear wheel material
Suppression components		5,5μH, 47nF, (0,47μF)
Enclosure class		IP40
Weight		0.88

Remarks

1 start worm

Connector layouts

Characteristic curves

Drawing

Shafts

Description

Output spindle: 7 / 16 Stub ACME RH

Wiring diagrams

Description

I   Terminal 1
II  Terminal 5
