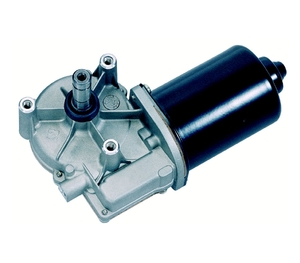

Motor picture

Motor picture 403958

Technical description

Motorhousing Deep drawn, corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing aluminium die cast

Gear wheel material plastic

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or tinned leads

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industry

Linear drives

General machinery

Vending machines

Agricultural technology

Office machines

Laboratory devices

Medical technology

Traffic & communications technology

Film/optics

Technical description

Motorhousing Deep drawn, corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing aluminium die cast

Gear wheel material plastic

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or tinned leads

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industry

Linear drives

General machinery

Vending machines

Agricultural technology

Office machines

Laboratory devices

Medical technology

Traffic & communications technology

Film/optics

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 5
Nominal speed [min-1] nN 52
Nominal power [W] PN 27.227
Nominal current [A] IN 4
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   63/1
Gear wheel material   Plastic
Suppression components   4.7μH, 1nF
Enclosure class   IP40
Weight   1.2

Connector layouts

Connector layout K 144

Description

I   Blade terminal ends 6,3 x 0,8 DIN 46 244
II  Blade terminal ends 4,8 x 0,8 DIN 46 244

Characteristic curves

Characteristic Curve 403958

Drawing

Drawing 0277 AR

Shafts

Output shaft drawing W193
Output shaft drawing W197

! Lefthand thread

Wiring diagrams

Wiring diagram S 30
