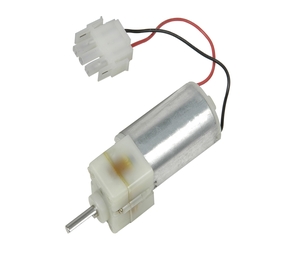

Motor picture

Motor picture 402757

Technical description



Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh spur gear

Gear housing plastic

Gear wheel material steel, plastic or bronze

Lubrication grease

Mechanical interface steel shaft

Electric interface tinned leads or with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications



Automatic machines

Constructional engineering

Business machines

Laboratory appliances

Medical appliances

Traffic & communications technology

Photographic/optical equipment

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type

Performance data

Rated voltage [V] UN 12
Nominal torque [Nm] MN 0.24
Nominal speed [min-1] nN 14.733
Nominal power [W] PN 0.37
Nominal current [A] IN 0
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   109/1
Gear wheel material
Suppression components
Enclosure class   IP40
Weight   0.18

Connector layouts

Connector layout K18

Characteristic curves

Characteristic Curve 402757

Drawing

Drawing 0202C

Shafts

Output shaft drawing W73

Wiring diagrams

Wiring diagram S 30
