402 781 (GMAG)    订购编号:

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

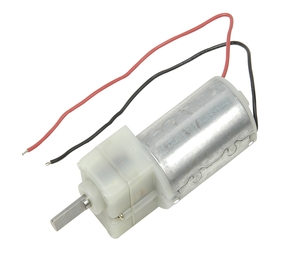

Motor picture

Motor picture 402781

Technical description



Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh spur gear

Gear housing plastic

Gear wheel material steel, plastic or bronze

Lubrication grease

Mechanical interface steel shaft

Electric interface tinned leads or with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications



Automatic machines

Constructional engineering

Business machines

Laboratory appliances

Medical appliances

Traffic & communications technology

Photographic/optical equipment

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 0.5
Nominal speed [min-1] nN 48.889
Nominal power [W] PN 2.56
Nominal current [A] IN 0.5
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   109/1
Gear wheel material
Suppression components
Enclosure class   IP40
Weight   0.18

Connector layouts

Connector layout K14

Characteristic curves

Characteristic Curve 402781

Drawing

Drawing 0202C

Shafts

Output shaft drawing W73

Wiring diagrams

Wiring diagram S 30
