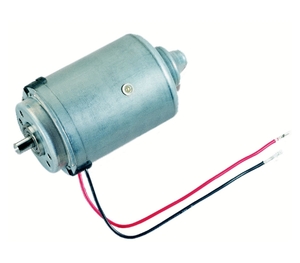

Motor picture

Motor picture 404621

Technical description

Motorhousing deep drawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh -

Gear housing -

Gear wheel material -

Lubrication grease

Mechanical interface steel shaft

Electric interface leads with connector

Sensor -

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Linear Drives

Automotive:

Electric torque management, Automated manual transmission

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A: Ball - B: Sleeve

Performance data

Rated voltage [V] UN 12
Nominal torque [Nm] MN 0.2
Nominal speed [min-1] nN 1554.545
Nominal power [W] PN 32.558
Nominal current [A] IN 6
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   Gearless
Gear wheel material
Suppression components   5.0μH
Enclosure class   IP30
Weight   1.15

Connector layouts

Connector layout K 180

Description

I    Blade terminal receptacles 2,8 x 0,8 DIN 46 247
II   green
III  red

Characteristic curves

Characteristic Curve 404621

Drawing

Drawing 0273 A

Shafts

Output shaft drawing W31

Wiring diagrams

Wiring diagram S 27
