Motor picture

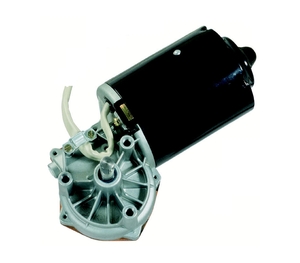

Motor picture 403179

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic, resin bonded fabrics, bronze

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or leads

Sensor -

Thermal protection -

EMC suppression optional

Applications

Industrial:

Machine construction

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A: Ball - B: Sleeve

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 8
Nominal speed [min-1] nN 41.629
Nominal power [W] PN 34.875
Nominal current [A] IN 11
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   59/1
Gear wheel material   Bronze
Suppression components   5.0μH
Enclosure class   IP20
Weight   2.9

Connector layouts

Connector layout K132

Description

I:  red
II: green

Characteristic curves

Characteristic Curve 403179

Drawing

Drawing 0291 AL

Shafts

Output shaft drawing W61

Description

A: keyway 5 - P9 width tolerance
B: undercut E 0.6 x 0.2 to DIN 509

Wiring diagrams

Wiring diagram S 27
