403 475 (SWMK)    订购编号:

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

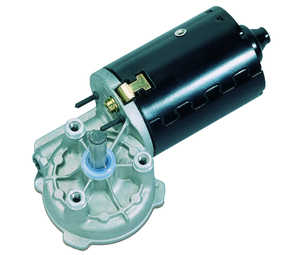

Motor picture

Motor picture 403 475

Technical description

Motorhousing rolled, corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing aluminium die cast

Gear wheel material plastic

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or tinned leads

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industry

Linear drives

General machinery

Vending machines

Agricultural technology

Office machines

Laboratory devices

Medical technology

Traffic & communications technology

Film/optics

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 0.8
Nominal speed [min-1] nN 322
Nominal power [W] PN 26.976
Nominal current [A] IN 4
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   41/4
Gear wheel material   plastic
Suppression components   1nF
Enclosure class   IP 30
Weight   1.2

Connector layouts

Connector layout K402857

Description

A:  housing MST AMP No. 2-521055-2
B:  spade terminals 6.3 x 0.8 DIN 46 244

I:  red
II: green

Characteristic curves

Characteristic curve 403 475

Drawing

Drawing 0270 AL

Shafts

Output shaft drawing W 159

Wiring diagrams

Wiring diagram S 30
