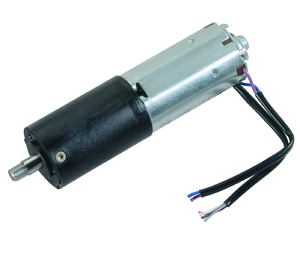

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh spur gear

Gear housing plastic

Gear wheel material plastic

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or leads with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Linear actuators, home automation

Automotive:

Spoiler adjustment

Design Data

Commutation		Brushed
Direction of rotation		Bi-directional
Bearing type		sleeve bearing

Performance data

Rated voltage [V]	UN	24
Nominal torque [Nm]	MN	4
Nominal speed [min-1]	nN	166.667
Nominal power [W]	PN	69.813
Nominal current [A]	IN	8
Nominal force [kN]	FN	0

Sensor data

Pulses		39
Output channels		2

Other data

Gear ratio		39.7/1
Gear wheel material		plastic
Suppression components		4,0μH, 1nF
Enclosure class		IP 30
Weight		0.65

Remarks

d = 3,3mm, for self-cutting screw 4mm

Connector layouts

Description

I   Terminal 1, motor, violet
II  Terminal 2, motor, blue

Characteristic curves

Drawing

hafts

Wiring diagrams

Description

No description available

I    Terminal 1, OUT A1, grey
II   Terminal 2, OUT A2, black
III  Terminal 3, + , white
IV  Terminal 4, - , red
