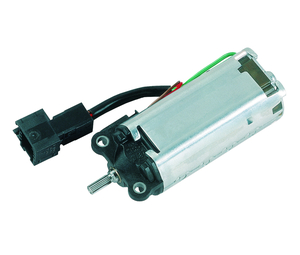

Motor picture
Technical description
Motorhousing sheet metal, rolled and corrosion protected
Excitation field permanent magnet
Type of gear mesh -
Gear housing -
Gear wheel material -
Lubrication -
Mechanical interface steel shaft
Electric interface connector or leads with connector
Sensor optional
Thermal protection optional
EMC suppression optional
Applications
Industrial:
Linear drives, machine construction
Automotive:
Seat track drive
Design Data
| Commutation | Brushed | |
| Direction of rotation | Bi-directional | |
| Bearing type | A:Sleeve - B:Sleeve |
Performance data
| Rated voltage [V] | UN | 12 |
| Nominal torque [Nm] | MN | 0.05 |
| Nominal speed [min-1] | nN | 2669.643 |
| Nominal power [W] | PN | 13.978 |
| Nominal current [A] | IN | 3.5 |
| Nominal force [kN] | FN | 0 |
Sensor data
| Pulses | 2 | |
| Output channels | 1 |
Other data
| Gear ratio | ||
| Gear wheel material | ||
| Suppression components | 7,5μH | |
| Enclosure class | IP 40 | |
| Weight | 0.52 |
Connector layouts
Description
I Terminal 1, motor, green
II Terminal 2, motor, black
III Terminal 3, Hall-IC + , red
IV Terminal 4, Hall-IC - , brown
Characteristic curves
Drawing
Shafts
Description
I Tapered splines 5 x 6 DIN 5481
Wiring diagrams
Description
I Terminal 1, green
II Terminal 2, black
I Terminal 3, + , red
II Terminal 4, - , brown
