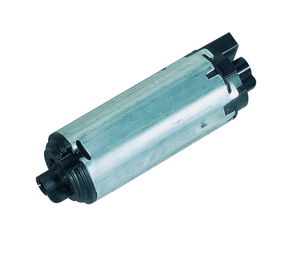

Motor picture
Technical description
Motorhousing sheet metal, rolled and corrosion protected
Excitation field permanent magnet
Type of gear mesh -
Gear housing -
Gear wheel material -
Lubrication -
Mechanical interface steel shaft
Electric interface connector or leads with connector
Sensor optional
Thermal protection optional
EMC suppression optional
Applications
Industrial:
Linear drives, machine construction
Automotive:
Seat track drive
Design Data
| Commutation | Brushed | |
| Direction of rotation | Bi-directional | |
| Bearing type | A:Sleeve - B:Sleeve |
Performance data
| Rated voltage [V] | UN | 12 |
| Nominal torque [Nm] | MN | 0.1 |
| Nominal speed [min-1] | nN | 2025 |
| Nominal power [W] | PN | 21.206 |
| Nominal current [A] | IN | 3 |
| Nominal force [kN] | FN | 0 |
Sensor data
| Pulses | 0 | |
| Output channels | 0 |
Other data
| Gear ratio | ||
| Gear wheel material | ||
| Suppression components | 2,5μH, 47nF ( ) | |
| Enclosure class | IP 40 | |
| Weight | 0.56 |
Connector layouts
Description
Connector TYCO C-208-15621 (Z) mating with:
Connector housing 1379217-3 & cover 1379218-2
Characteristic curves
Drawing
Wiring diagrams
Description
I Terminal 1
II Terminal 5
