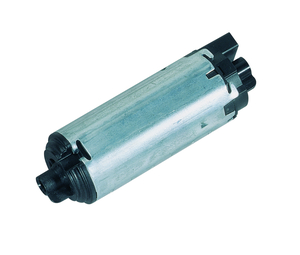

Motor picture

Motor picture 404 744

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh -

Gear housing -

Gear wheel material -

Lubrication -

Mechanical interface steel shaft

Electric interface connector or leads with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Linear drives, machine construction

Automotive:

Seat track drive

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Sleeve - B:Sleeve

Performance data

Rated voltage [V] UN 12
Nominal torque [Nm] MN 0.1
Nominal speed [min-1] nN 2025
Nominal power [W] PN 21.206
Nominal current [A] IN 4.5
Nominal force [kN] FN 0

Sensor data

Pulses   1
Output channels   1

Other data

Gear ratio
Gear wheel material
Suppression components   2,5μH, 47nF
Enclosure class   IP 40
Weight   0.56

Connector layouts

Connector layout K 220

Description

Connector TYCO C-208-15621 (Z) mating with:
Connector housing 1379217-3 & cover 1379218-2

Characteristic curves

Characteristic curve 404 744

Drawing

Drawing 0220 F

Shafts

Output shaft drawing W 266
Output shaft drawing W 267

Wiring diagrams

Wiring diagram S 86
Wiring diagram S 85

Description

I   Terminal 1
II  Terminal 5

I   Terminal 4, Hall-IC +
II  Terminal 2, Hall-IC -
