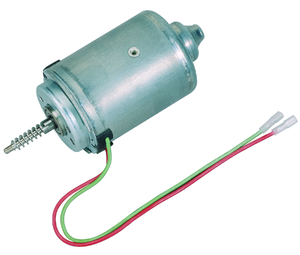

Motor picture

Technical description

Motorhousing deep drawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh -

Gear housing -

Gear wheel material -

Lubrication grease

Mechanical interface steel shaft

Electric interface leads with connector

Sensor optional

thermal protection optional

EMC suppression optional

Applications

Industrial:

Linear Drives

Automotive:

Electric torque management, Automated manual transmission

Design Data

Commutation		Brushed
Direction of rotation		Bi-directional
Bearing type		A:Ball - B:Sleeve

Performance data

Rated voltage [V]	UN	24
Nominal torque [Nm]	MN	0.12
Nominal speed [min-1]	nN	3496
Nominal power [W]	PN	43.932
Nominal current [A]	IN	3
Nominal force [kN]	FN	0

Sensor data

Pulses		0
Output channels		0

Other data

Gear ratio
Gear wheel material
Suppression components		5μH, 1nF
Enclosure class		IP 30
Weight		0.9

Remarks

4 start worm

Connector layouts

Description

I    Receptacle for tabs 2,8 x 0,8 DIN 46 247
II   red
III  black

Characteristic curves

Drawing

Shafts

Description

no of starts 4 ,lead angle 30°31'35", pressure angle: 15°, pitch 11.6707 mm (0,459"), module 0,8

Wiring diagrams
