404 469 (GML)    订购编号:

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

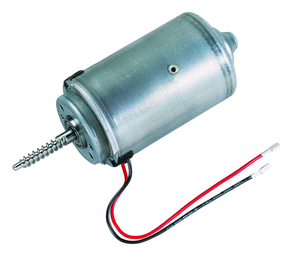

Motor picture

Motor picture 404 469

Technical description

Motorhousing deep drawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh -

Gear housing -

Gear wheel material -

Lubrication grease

Mechanical interface steel shaft

Electric interface leads with connector

Sensor -

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Linear Drives

Automotive:

Electric torque management, Automated manual transmission

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Ball - B-Sleeve

Performance data

Rated voltage [V] UN 36
Nominal torque [Nm] MN 0.2
Nominal speed [min-1] nN 3807.143
Nominal power [W] PN 79.737
Nominal current [A] IN 3
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio
Gear wheel material
Suppression components   5μH, 10nF
Enclosure class   IP 30
Weight   1.15

Connector layouts

Connector layout K 190

Description

I    Receptacles for tabs 2,8 x 0,8 DIN 46 247
II   black
III  red

Characteristic curves

Characteristic curve 404 469

Drawing

Drawing 0273 A

Shafts

Output shaft drawing W 233

Description

no of starts 2, lead angle 19°48'54", pressure angle 15°, module 1, pitch 3,141 mm (0,124")

Wiring diagrams

Wiring diagram S 30
