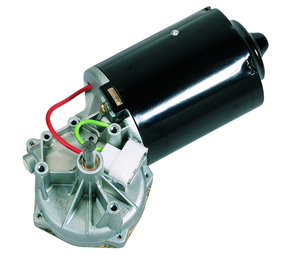

Motor picture

Motor picture 402 525

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic, resin bonded fabrics, bronze

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or leads

Sensor -

Thermal protection -

EMC suppression optional

Applications

Industrial:

Machine construction

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Ball - B:Sleeve

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 8
Nominal speed [min-1] nN 69.789
Nominal power [W] PN 58.467
Nominal current [A] IN 6
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   46/1
Gear wheel material   Resinbonded fabric
Suppression components
Enclosure class   IP 20
Weight   2.9

Remarks

d = M6x16mm

Connector layouts

Connector layout K 243

Description

Flat plug 6,8x0,8 DIN 46244 mating with receptacle for tabs and connector housing 163 006-1, drwg C163006

Characteristic curves

Characteristic curve 402 525

Drawing

Drawing 0291 AL

Shafts

Output shaft drawing W 278

Wiring diagrams

Wiring diagram S 28
