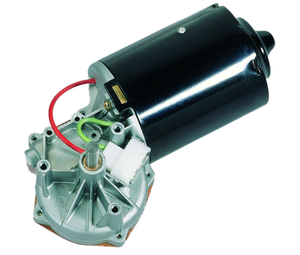

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic, resin bonded fabrics, bronze

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or leads

Sensor -

Thermal protection -

EMC suppression optional

Applications

Industrial:

Machine construction

Design Data

Commutation		Brushed
Direction of rotation		Bi-directional
Bearing type		A:Ball - B:Sleeve

Performance data

Rated voltage [V]	UN	12
Nominal torque [Nm]	MN	6
Nominal speed [min-1]	nN	47.2
Nominal power [W]	PN	29.657
Nominal current [A]	IN	6
Nominal force [kN]	FN	0

Sensor data

Pulses		0
Output channels		0

Other data

Gear ratio		59/1
Gear wheel material		Resinbonded fabric
Suppression components
Enclosure class		IP 20
Weight		2.9

Remarks

d = M6x16mm

Connector layouts

Description

Flat plug 6,8x0,8 DIN 46244 mating with receptacle for tabs and connector housing 163 006-1, drwg C163006

Characteristic curves

Drawing

Shafts

Wiring diagrams
