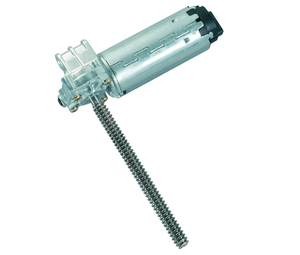

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic

Lubrication grease

Mechanical interface steel lead screw

Electric interface connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Home automation

Automotive:

Seat tilt and height adjustment

Design Data

Commutation		Brushed
Direction of rotation		Bi-directional
Bearing type		A:Sleeve - B:Sleeve

Performance data

Rated voltage [V]	UN	12
Nominal torque [Nm]	MN	1.5
Nominal speed [min-1]	nN	135.738
Nominal power [W]	PN	21.322
Nominal current [A]	IN	6
Nominal force [kN]	FN	2

Sensor data

Pulses		29
Output channels		1

Other data

Gear ratio		29/1
Gear wheel material		plastic
Suppression components		5,5μH, 47nF, (0,47μF)
Enclosure class		IP 40
Weight		0.88

Remarks

L = 116mm, 1 start worm

Connector layouts

Description

Connector TYCO C-208-15621 (Z) mating with:
Connector housing 1379217-3 & cover 1379218-2

Characteristic curves

Drawing

hafts

Description

shape 7/16-8 STUB ACME RH, pressure angle 20°, pitch 3,175mm (0,125"), no of starts 1

Wiring diagrams

Description

I   Terminal 1
II  Terminal 5

I   Terminal 4, Hall-IC +
II  Terminal 2, Hall-IC -
