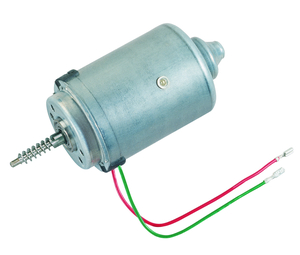

Motor picture

Technical description

Motorhousing deep drawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh -

Gear housing -

Gear wheel material -

Lubrication grease

Mechanical interface steel shaft

Electric interface leads with connector

Sensor optional

thermal protection optional

EMC suppression optional

Applications

Industrial:

Linear Drives

Automotive:

Electric torque management, Automated manual transmission

Design Data

Commutation		Brushed
Direction of rotation		Bi-directional
Bearing type		A:Ball - B:Sleeve

Performance data

Rated voltage [V]	UN	24
Nominal torque [Nm]	MN	0.15
Nominal speed [min-1]	nN	1964.286
Nominal power [W]	PN	30.855
Nominal current [A]	IN	2.5
Nominal force [kN]	FN	0

Sensor data

Pulses		0
Output channels		0

Other data

Gear ratio
Gear wheel material
Suppression components		5μH
Enclosure class		IP 30
Weight		0.9

Remarks

3 start worm

Connector layouts

Description

I    Receptacle for tabs 2,8 x 0,8 DIN 46 247
II   green
III  red

Characteristic curves

Drawing

Shafts

Description

no of starts 3, lead angle 30°33'44", pressure angle 15°, module 1, pitch 3,141 mm (0,124")
