Motor picture

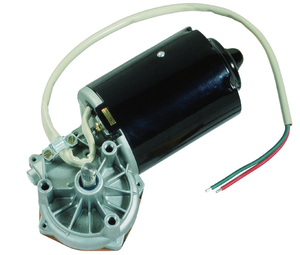

Motor picture 403 334

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic, resin bonded fabrics, bronze

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or leads

Sensor -

Thermal protection -

EMC suppression optional

Applications

Industrial:

Machine construction

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Ball - B:Sleeve

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 3
Nominal speed [min-1] nN 209
Nominal power [W] PN 65.659
Nominal current [A] IN 8
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   44/2
Gear wheel material   plastic
Suppression components   6,5μH, 1nF
Enclosure class   IP 20
Weight   2.9

Remarks

d = M8 x 16 mm

Connector layouts

Connector layout K 274

Description

I   red
II  green

Characteristic curves

Characteristic curve 403 334

Drawing

Drawing 0291 BL

Shafts

Output shaft drawing W 070

Wiring diagrams

Wiring diagram S 30
