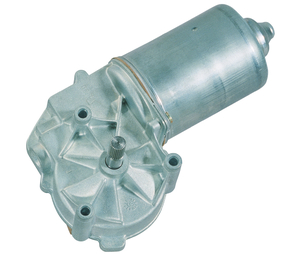

Motor picture

Motor picture 404 885

Technical description

Motorhousing deepdrawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic

Lubrication grease

Mechanical interface steel shaft

Electric interface connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Home Automation, Machine Construction

Automotive:

Trunk & tailgate opening & closing

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Ball - B:Sleeve

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 5
Nominal speed [min-1] nN 56.833
Nominal power [W] PN 29.758
Nominal current [A] IN 5.5
Nominal force [kN] FN 0

Sensor data

Pulses   63
Output channels   2

Other data

Gear ratio   63/1
Gear wheel material   plastic
Suppression components   3,5μH
Enclosure class   IP 30
Weight   1.25

Remarks

d = for thread-forming screw M6 DIN ISO 965-2

Connector layouts

Connector layout K 320
Connector layout K 319
Connector layout K 314

Description



Flat plug (DIN 46244) 6,3x0,8 mating with receptacle housing part#180907, drwg# C-180907& Receptacles for tabs, conductor cross section 0,5-1,5 sqmm (20-18AWG) part# 925603-x, drwg# 925603 www.tycoelectronics.com

I    Hall-IC A1, terminal 3
II   Hall-IC A2, terminal 4
III  Hall-IC +, terminal 5
IV  Hall-IC -, terminal 6
V   Mating connector: Panduit CE100 F22 - 04

I   Ground connection
    Blade terminal 6.3 x 0.8 DIN 46 244

Characteristic curves

Characteristic curve 404 885

Drawing

Drawing 0268 AL

Shafts

Output shaft drawing W 321

Description

I serration (rolled): no of teeth 28, pitch circle dia 9 mm, tip circle dia 9.6 mm, root circle dia 8.26 mm space width angle 60°- go/no go gauge Frenco 33906

Wiring diagrams

Wiring diagram S 27
Wiring diagram S 141

I    Hall-IC A1, terminal 3
II   Hall-IC A2, terminal 4
III  Hall-IC +, terminal 5
IV  Hall-IC -, terminal 6
