404 904 (GMPD)    订购编号:

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

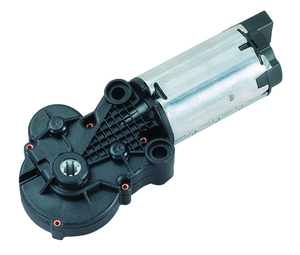

Motor picture

Motor picture 404 904

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh combination of worm and spur gear

Gear housing plastic

Gear wheel material plastic

Lubrication grease

Mechanical interface hollow shaft with profile

Electric interface connector or leads with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Machine construction

Automotive:

Seat Recline Adjustment

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Sleeve - B:Sleeve

Performance data

Rated voltage [V] UN 12
Nominal torque [Nm] MN 2
Nominal speed [min-1] nN 18.846
Nominal power [W] PN 3.947
Nominal current [A] IN 3
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio   210/1
Gear wheel material   plastic
Suppression components   5,5μH, 47nF
Enclosure class   IP 40
Weight   0.44

Connector layouts

Connector layout K 220

Description

Connector TYCO C-208-15621 (Z) mating with:
Connector housing 1379217-3 & cover 1379218-2

Characteristic curves

Characteristic curve 404 904

Drawing

Drawing 0320 BR

Shafts

Output shaft drawing W 224

Description

I   through Profile KRC 316928 AEIZ 01

Wiring diagrams

Wiring diagram S 93

Description

I   Terminal 1
II  Terminal 5
