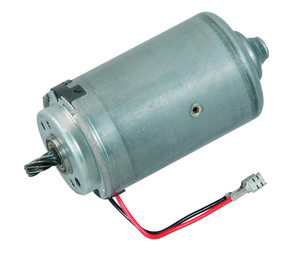

Motor picture

Motor picture 404 966

Technical description

Motorhousing deep drawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh -

Gear housing -

Gear wheel material -

Lubrication grease

Mechanical interface steel shaft

Electric interface leads with connector

Sensor -

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Linear Drives

Automotive:

Electric torque management, Automated manual transmission

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Ball - B:Sleeve

Performance data

Rated voltage [V] UN 12
Nominal torque [Nm] MN 0.3
Nominal speed [min-1] nN 3156.154
Nominal power [W] PN 99.153
Nominal current [A] IN 16
Nominal force [kN] FN 0

Sensor data

Pulses   0
Output channels   0

Other data

Gear ratio
Gear wheel material
Suppression components   5μH, 10nF
Enclosure class   IP 30
Weight   1.1

Connector layouts

Connector layout K 317

Description

I    Receptacle for tabs 6,3 x 0,8
     G&H 35040.213.011
II   red
III  green

Characteristic curves

Characteristic curve 404 966

Drawing

Drawing 0273 A

Shafts

Output shaft drawing W 325

Description

no of starts 7, lead angle 20°, pressure angle 20°, module 0,7, pitch 2,1991 mm (0,087"), induction hardened surface,

Wiring diagrams

Wiring diagram S 74
