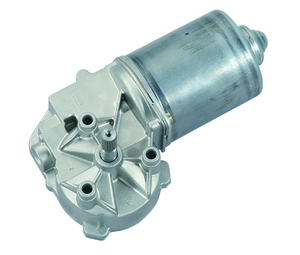

Motor picture

Motor picture 405 006

Technical description

Motorhousing deep drawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic, bronze

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or leads with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Door & gate openers, pumps, lubricating technology, appliance, linear actuators

Automotive:

Trunk & tailgate opening & closing

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Ball - B:Sleeve

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 4
Nominal speed [min-1] nN 59.8
Nominal power [W] PN 25.049
Nominal current [A] IN 3
Nominal force [kN] FN 0

Sensor data

Pulses   69
Output channels   2

Other data

Gear ratio   69/1
Gear wheel material   plastic
Suppression components   6μH
Enclosure class   IP 30
Weight   1.25

Remarks

d = for thread-forming screw M6 DIN ISO 965-2

Connector layouts

Connector layout K 320
Connector layout K 324
Connector layout K 312

Description

Flat plug (DIN 46244) 6,3x0,8 mating with receptacle housing part#180907, drwg# C-180907& Receptacles for tabs, conductor cross section 0,5-1,5 sqmm (20-18AWG) part# 925603-x, drwg# 925603

MAS-CON Solder tail MLAS 100-3435 mating with end connector CE100F-22-xx-x-x or CEP100 F-22-xx-x-x



Ground connection 6.3 x 0.8 DIN 46 244, d=0.9-0.1mm, mating with receptacle for tab, conductor cross section 0.5-1.5 sqmm/20-16 AWG, part# RSB8240.158 F 6.3-1.5

Characteristic curves

Characteristic curve 405 006

Drawing

Drawing 0266 AL

Shafts

Output shaft diagram W 334

Description

I serration (rolled): no of teeth 28, pitch circle dia 9 mm, tip circle dia 9.6 mm, root circle dia 8.26 mm space width angle 60° - go/no go gauge Frenco 33906

Wiring diagrams

Wiring diagram S 27
Wiring diagram S 141

Description

No description available

I    Hall-IC A1, terminal 3
II   Hall-IC A2, terminal 4
III  Hall-IC +, terminal 5
IV  Hall-IC -, terminal 6
