404 991 (DCK31)    订购编号:

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

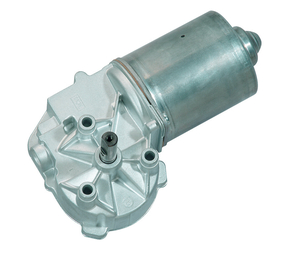

Motor picture

Motor picture 404 991

Technical description

Motorhousing deep drawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic, bronze

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or leads with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Door & gate openers, pumps, lubricating technology, appliance, linear actuators

Automotive:

Trunk & tailgate opening & closing

Motor picture

Motor picture 404 991

Downloads

Motor Datasheet (PDF)

Get Adobe Reader

Technical description

Motorhousing deep drawn & corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic, bronze

Lubrication grease

Mechanical interface steel shaft

Electric interface connector or leads with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Door & gate openers, pumps, lubricating technology, appliance, linear actuators

Automotive:

Trunk & tailgate opening & closing

Connector layouts

Connector layout K 320
Connector layout K 325
Connector layout K 312

Description

Flat plug (DIN 46244) 6,3x0,8 mating with receptacle housing part#180907, drwg# C-180907& Receptacles for tabs, conductor cross section 0,5-1,5 sqmm (20-18AWG) part# 925603-x, drwg# 925603

MAS-CON Solder tail MLAS 100-3435 mating with end connector CE100F-22-xx-x-x or CEP100 F-22-xx-x-x



Ground connection 6.3 x 0.8 DIN 46 244, d=0.9-0.1mm, mating with receptacle for tab, conductor cross section 0.5-1.5 sqmm/20-16 AWG, part# RSB8240.158 F 6.3-1.5

Characteristic curves

Characteristic curve 404 991

Drawing

Drawing 0266 AL

Shafts

Output shaft drawing W 40

Wiring diagrams

Wiring diagram S 30
Wiring diagram S 124

I    Terminal 3, A
II   Terminal 4, +
III  Terminal 5, -
