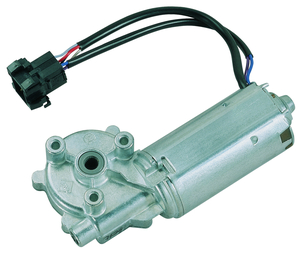

Motor picture

Motor picture 404 763

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic

Lubrication grease

Mechanical interface steel shaft or hollow shaft with profile

Electric interface connector or leads with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Catering, Office machines, Furniture Adjustment, Machine Construction

Automotive:

Sunroof adjustment

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Sleeve - B:Sleeve

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 2
Nominal speed [min-1] nN 120
Nominal power [W] PN 25.133
Nominal current [A] IN 5
Nominal force [kN] FN 0

Sensor data

Pulses   62
Output channels   2

Other data

Gear ratio   62/1
Gear wheel material   plastic
Suppression components   4μH, 1nF
Enclosure class   IP 30
Weight   0.71

Remarks

d = for thread-forming screw M5 DIN 7500

Connector layouts

Connector layout K 205

Description

I    Connector housing AMP 929505-2 mating with connector AMP 929504-2

blue motor, violet motor, white encoder +, red encoder -, grey A1, black A2

Characteristic curves

Characteristic curve 404 763

Drawing

Drawing 0225 DR

Shafts

Output shaft drawing W 148

Description

I   Tapered splines 7 x 8 DIN 5481
     continuous

Wiring diagrams

Wiring diagram S 30
Wiring diagram S 109

I    Terminal 1, OUT A1, grey
II   Terminal 2, OUT A2, black
III  Terminal 3, + , white
IV  Terminal 4, - , red
