404 910 (GMPG)    订购编号:

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

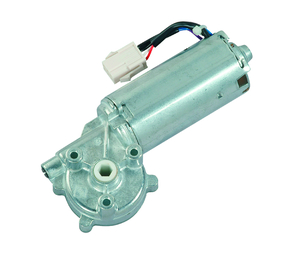

Motor picture

Motor picture 404 910

Technical description

Motorhousing sheet metal, rolled and corrosion protected

Excitation field permanent magnet

Type of gear mesh worm gear

Gear housing zinc die cast

Gear wheel material plastic

Lubrication grease

Mechanical interface steel shaft or hollow shaft with profile

Electric interface connector or leads with connector

Sensor optional

Thermal protection optional

EMC suppression optional

Applications

Industrial:

Catering, Office machines, Furniture Adjustment, Machine Construction

Automotive:

Sunroof adjustment

Design Data

Commutation   Brushed
Direction of rotation   Bi-directional
Bearing type   A:Sleeve - B:Sleeve

Performance data

Rated voltage [V] UN 24
Nominal torque [Nm] MN 1.5
Nominal speed [min-1] nN 28.438
Nominal power [W] PN 4.467
Nominal current [A] IN 1.5
Nominal force [kN] FN 0

Sensor data

Pulses   288
Output channels   1

Other data

Gear ratio   72/1
Gear wheel material   plastic
Suppression components   7,5μH
Enclosure class   IP 30
Weight   0.71

Remarks

d = for thread-forming screw M5 DIN 7500

Connector layouts

Connector layout K 268

Description

plug housing Molex minifit jr 39-01-2066 (4,2mm - .165"), terminals Molex 39-00-0430 (18-24AWG, gold plated)

1 violet motor, 2 black encoder gnd, 3 white encoder +, 4 blue motor, 6 red encoder out

Characteristic curves

Characteristic curve 404 910

Drawing

Drawing 0225 DL

Shafts

Output shaft drawing W 229

Wiring diagrams

Wiring diagram S 27
Wiring diagram S 125

Description

No description available

I    Terminal 3, + , white
II   Terminal 2, - , black
III  Terminal 6, OUT, red
