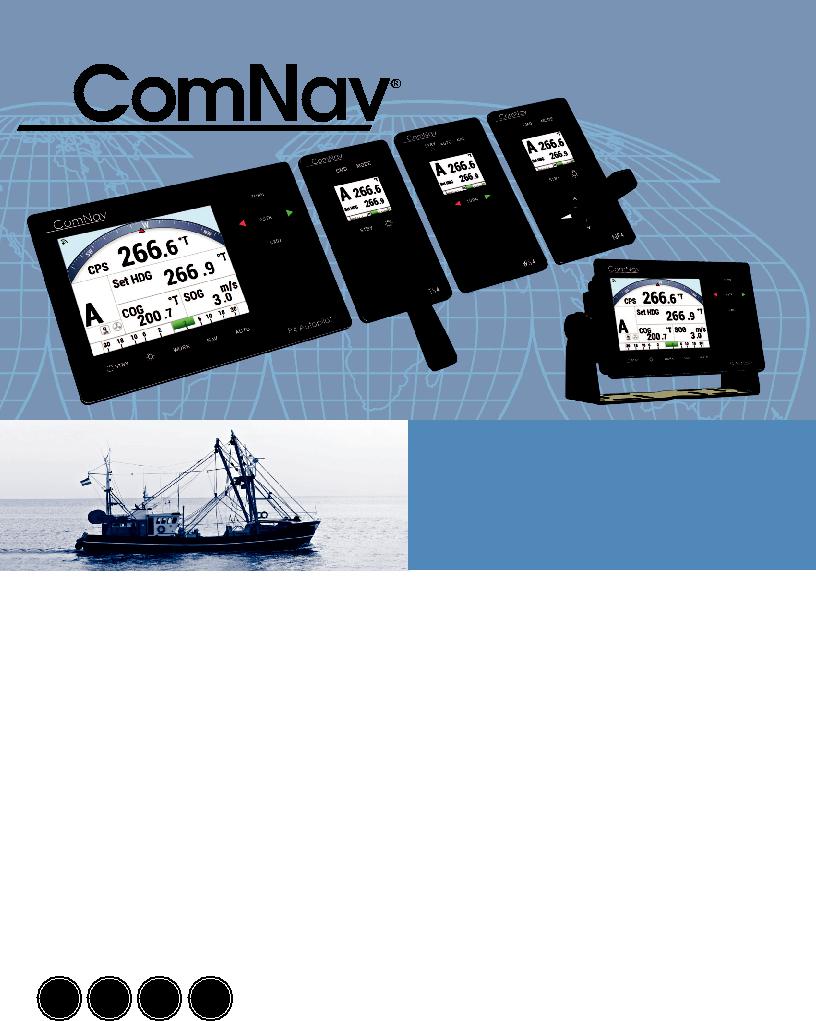

P4  AUTOPILOT - COMMERCIAL

Intelligent Steering

•IST – Intelligent Steering Technology provides superior vessel steering capability

•ADAPTIVE steering for sea conditions and varying vessel speeds

•AUTO-SETUP – allows auto-drive detection, rudder response time, compass detection and calibration

•WORK Mode suitable for Towboats and Workboats

•NMEA 2000, ETHERNET, and NMEA 0183 interface

•Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yachts

•PRC- Proportional Rate Control feature provides gentle smooth response

•Multi-Station capability with security station lock

•SUNLIGHT viewable LED backlit 5.7” TFT LCD 640 x 480 display

•NAV Mode provide adaptive precise track steering

•ALC – Automatic Leeway Compensation for Drift, Tide & Wind

•Fully compatible with onboard instruments and steering systems

•Z-Drive interface allows 360 ͦAzimuth drive interface using +/- 10 Volts /4-20 milliamps analog signal (optional)

•Auto Thrust-assist for Dead-ahead slow or station keeping (optional)

•Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Icelandic, and more

•Standard Mounting bracket – Flush Mount, Swivel mount bracket is optional

•IP67 Waterproof – Control Head, TS4, NF4 and WS4

•RoHS & CE compliance for EMI and RFI immunity

P4 Autopilot

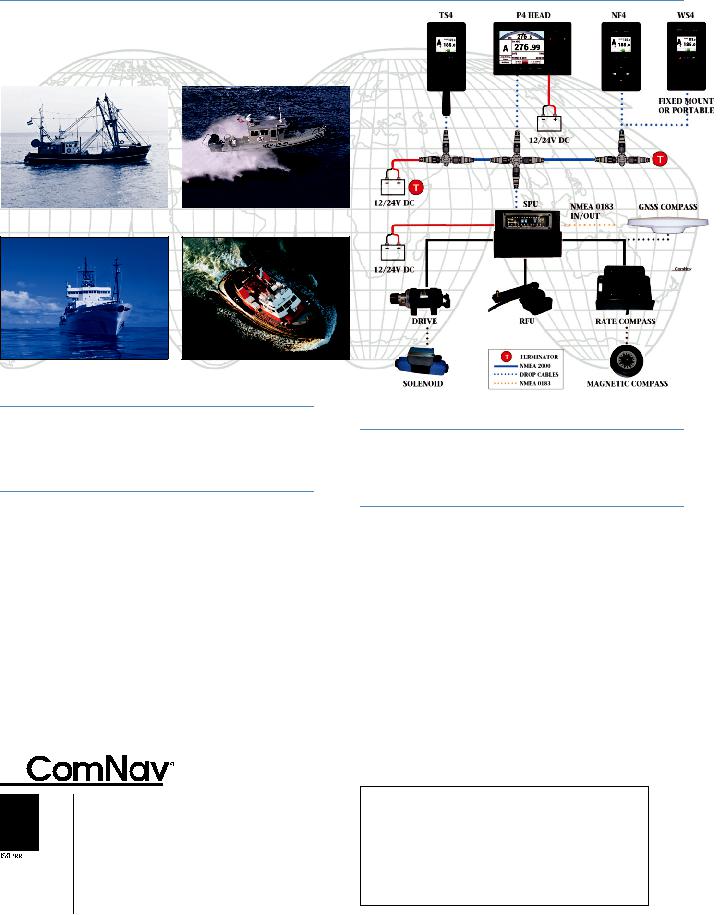

SYSTEM CONFIGURATION & OPTIONS

DIMENSIONS

P4 Head: 214mm x 145mm x 35mm / 8.4” x 5.7” x 1.9”

SPU: 257mm x 184mm x 73mm / 10.1” x 7.2” x 2.8”

TS4 / NF4 / WS4: 83mm x 145mm x 38mm / 3.2” x 5.7” x 1.4”

SPECIFICATIONS

Operating Voltage: 10 to 30 VDC

Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps

Network: NMEA 2000

Navigational Interface: NMEA 0183 inputs

NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)

Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Heading Sensor GNSS compass

Course Resolution: 1°

Course Detection: 0.5°

Control Head: Sunlight viewable high contrast LCD is 5.7” TFT LCD 640 x 480 VGA high resolution display

BASIC PACKAGE

•P4 Head, Signal Processing Unit, Compass, Rudder Follower Unit

Accessories: TS4, NF4, WS4, P4 Second Station, RA4 RAI Meter, 360 ͦAzimuth Drive Interface

ADDITIONAL FEATURES

•9 level backlit LCD display

•Colour head gives you Red Night Vision mode for comfortable viewing in all conditions

•Pre-defined parameter sets for full orsemi-displacement, planning hulls, stern drives and sailboats

•Multiple steering capability for Fast, Slow and Work modes

•Simple to use course knob with mechanical detent

•Multi-station capability with security station lock

•Automatic trim

•Adjustable yaw, turn rate and rudder settings

•PORT and STBD dodge buttons for collision avoidance

•Output for optional analog rudder angle indicator, up to 4 stations

•Fully compatible with onboard NMEA instruments and most steering systems
