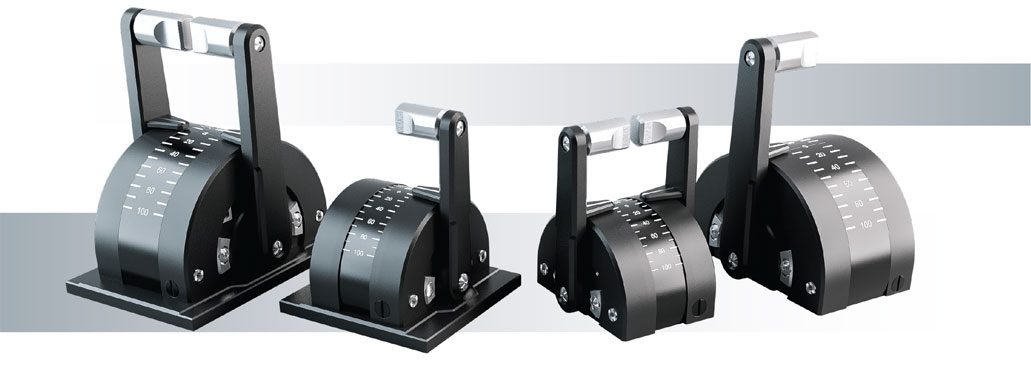

New and modern design – Multi interface options

• High quality – Single or double lever.
• Type approved according to IEC60945.
• Potentiometers, 5Vsensors, 4-20mA, CANopen.
• With and without panel plate.
• IP 66
• Motorized versions
• LED-illuminated scales.
• Single and double
• Thruster / propulsion
• With and without panel plate
• Build in switches
• Detents
• Blocked aft movement
• Motorized
• Other options on request

Enclosure: IP66

Materials: Aluminium, Steel, POM

Finish: Anodised, SurTec

Appr. weight 1 – 1,5kg depending on version

Handle movement / Electrical movement: +/- 60º / 245 deg

Potentiometer: 1×5/2x5kPotentiometer/ Dual 5Vsensor/

Dual CANopen/Dual 4-20mA

Detent: In Zero

Friction: Adjustable

Scale foil: Black and white 100-0-100 thruster or propulsion scale

Illuminated scale: 24V LED

Termination: 16 pins contact with plug

Type approval: EN/IEC60945, ABS, BV, DNV/GL, KR, LR, NK, RINA, PRS, RC, CRS

Measurements

LF90X: L=96mm W=96mm H=112mm

LF120X: L=144mm W=96mm H=145mm

Console depth needed : ≤100

This control lever is one of several models developed and manufactured by Lilaas AS. It has been tested according to our final test and control procedures.

Additional thruster/proulsion control levers : LE90, LF90, LF120, LF180, L01
