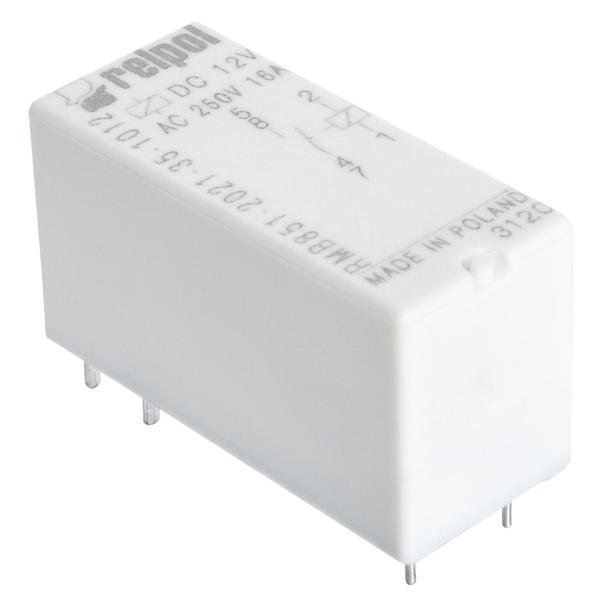

Contacts 1 NO; rated load AC1 – 16 A/250 V AC; colis DC; for PCB and sockets
|
Contact data |
||
|
Number and type of contacts |
|
1 NO |
|
Contact material |
|
AgNi |
|
Rated / max. switching voltage |
AC |
400 V |
|
Rated load (capacity) |
AC1 |
16 A/250 V AC |
|
DC1 |
16 A/24 V DC |
|
|
Rated current |
|
16 A |
|
Max. breaking capacity |
AC1 |
4 000 VA |
|
Coil data |
||
|
Rated voltage |
DC |
3 ... 24 V |
|
Rated power consumption |
DC |
0,9 W |
|
Insulation |
||
|
Dielectric strength |
||
|
- between coil and contacts - contact clearance |
|
5 000 V AC |
|
|
1 000 V AC |
|
|
General data |
||
|
Electrical life resistive |
AC1 |
3 x 104 16 A, 250 V AC |
|
Mechanical life (cycles) |
|
5 x 106 |
|
Ambient temperature operating |
AC |
-40…+85°C |
|
DC |
-20…+85°C |
|
|
Sockets |
GZT80, GZM80, GZS80, GZMB80, EC50, PW80, GD50 |
|
