Przekaźnik RS50

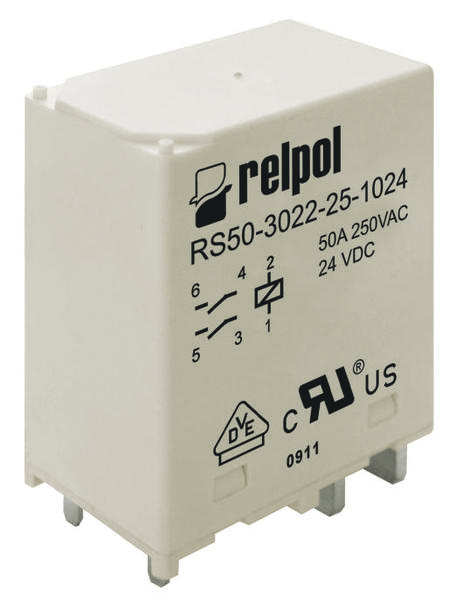

Relay RS50
Contacts: 2 NO; rated load AC1 - 48 A / 250 V AC; coils DC; for PCB; reinfforced insulation; contact gap ≥ 1,85 mm





Contact data

Number and type of contacts



2 NO

Contact material



AgSnO2

Rated / max. switching voltage

AC

250 V / 440 V

Rated load (capacity)

AC1

48 A / 250 V AC

DC1

48 A / 24 V DC

Rated current



50 A

Max. breaking capacity

AC1

12 500 VA

Coil data

Rated voltage

DC

5 ... 110 V

Rated power consumption

DC

0,48 W

Insulation

Dielectric strength

- between coil and contacts

- contact clearance

- pole - pole



5 000 V AC



2 500 V AC



2 500 V AC

General data

Electrical life resistive

AC1

10  50 A, 250 V AC, 20 °C

Mechanical life (cycles)



106

Ambient temperature operating



-40...+85 o

Products

RS50-3021-25-1005

Przekaźniki do systemow solarnych, Cewka: 5VDC

RS50-3021-25-1009

Przekaźniki do systemow solarnych, Cewka: 9VDC

RS50-3021-25-1012

Przekaźniki do systemow solarnych, Cewka: 12VDC

RS50-3021-25-1018

Przekaźniki do systemow solarnych, Cewka: 18VDC

RS50-3021-25-1024

Przekaźniki do systemow solarnych, Cewka: 24VDC

RS50-3022-25-1005

Przekaźniki do systemow solarnych, Cewka: 5VDC

RS50-3022-25-1009

Przekaźniki do systemow solarnych, Cewka: 9VDC

RS50-3022-25-1012

Przekaźniki do systemow solarnych, Cewka: 12VDC

RS50-3022-25-1018

Przekaźniki do systemow solarnych, Cewka: 18VDC

RS50-3022-25-1024

Przekaźniki do systemow solarnych, Cewka: 24VDC

RS50-3022-25-1110

Przekaźniki do systemow solarnych, Cewka: 110VDC
