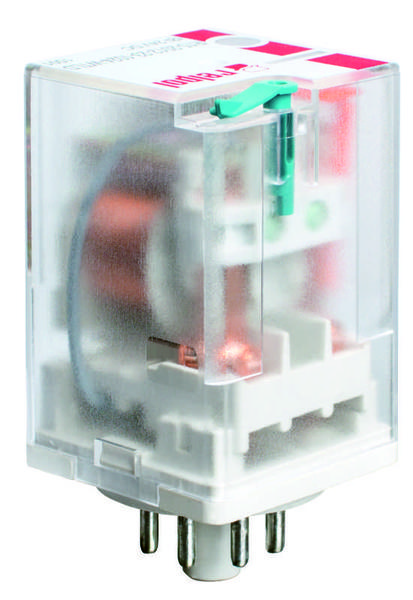

Przekaźnik R15
Przekaźnik R15 2P
Przekaźnik R15















Contacts: 2 CO; rated load AC1 - 10 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator; test button; other equipment (option)


Contact data

Number and type of contacts



2 C/O

Contact material



AgNi, AgNi/Au 0,2 µm, AgNi/Au 5 µm

Rated / max. switching voltage

AC

250 V / 440 V

Rated load (capacity)

AC1

10 A / 250 V AC  10 A / 277 V AC UL 508

DC1

10 A / 24 V DC

Rated current



10 A

Max. breaking capacity

AC1

2 500 VA

Coil data

Rated voltage

AC

6 ... 240 V  50/60 Hz

DC

6 ... 220 V

Rated power consumption

AC

2,8 VA 50 Hz  2,5 VA 60 Hz

DC

1,5 W

Insulation

Dielectric strength

- between coil and contacts- contact clearance- pole - pole



2 500 V AC



1 500 V AC



2 000 V AC

General data

Electrical life resistive

AC1

≥2 x 10   10 A, 250 V AC

Mechanical life (cycles)



≥2 x 107

Ambient temperature operating

AC

-40...+55 o



DC

-40...+70 oC

Sockets

PZ8, GZU8, GZ8, GZS8, GZP8, GOP8

Accessories for sockets

Spring wire clips

Products

R15-2012-23-1012-WT

Industrial relay, 2 C/O contacts, Coil: 12VDC, Rated load: 10A

R15-2012-23-1024-WT

Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 10A

R15-2012-23-1220-WT

Industrial relay, 2 C/O contacts, Coil: 220VDC, Rated load: 10A

R15-2012-23-5024-WT

Industrial relay, 2 C/O contacts, Coil: 24VAC, Rated load: 10A

R15-2012-23-5230-WT

Industrial relay, 2 C/O contacts, Coil: 230VAC, Rated load: 10A

R15-1012-14-1220

Industrial relay, 2 C/O contacts, Coil: 220VDC, Rated load:10A, without housing

R15-1012-23-1042

Przekaźnik przemysłowy, Styki: 2P, Cewka: 42VDC, Prąd obc: 10A

R15-1012-25-1220

Industrial relay, 2 C/O contacts, Coil: 220VDC, Rated load:10A, PCB

R15-2012-23-1006-WT

Industrial relay, 2 C/O contacts, Coil: 6VDC, Rated load: 10A

R15-2012-23-1006-WTD

Industrial relay, 2 C/O contacts, Coil: 6VDC, Rated load: 10A, Diode

R15-2012-23-1006-WTL

Industrial relay, 2 C/O contacts, Coil: 6VDC, Rated load: 10A, LED

R15-2012-23-1006-WTLD

Industrial relay, 2 C/O contacts, Coil: 6VDC, Rated load: 10A, Diode+ LED

R15-2012-23-1012-WTD

Industrial relay, 2 C/O contacts, Coil: 12VDC, Rated load: 10A, Diode

R15-2012-23-1012-WTL

Industrial relay, 2 C/O contacts, Coil: 12VDC, Rated load: 10A, LED

R15-2012-23-1012-WTLD

Industrial relay, 2 C/O contacts, Coil: 12VDC, Rated load: 10A, Diode+ LED

R15-2012-23-1024-WTD

Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 10A, Diode

R15-2012-23-1024-WTL

Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 10A, LED

R15-2012-23-1024-WTLD

Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 10A, Diode+ LED

R15-2012-23-1048-WT

Industrial relay, 2 C/O contacts, Coil: 48VDC, Rated load: 10A

R15-2012-23-1048-WTD

Industrial relay, 2 C/O contacts, Coil: 48VDC, Rated load: 10A, Diode

R15-2012-23-1048-WTL

Industrial relay, 2 C/O contacts, Coil: 48VDC, Rated load: 10A, LED

R15-2012-23-1048-WTLD

Industrial relay, 2 C/O contacts, Coil: 48VDC, Rated load: 10A, Diode+ LED

R15-2012-23-1060-WT

Industrial relay, 2 C/O contacts, Coil: 60VDC, Rated load: 10A

R15-2012-23-1060-WTD

Industrial relay, 2 C/O contacts, Coil: 60VDC, Rated load: 10A, Diode

R15-2012-23-1060-WTL

Industrial relay, 2 C/O contacts, Coil: 60VDC, Rated load: 10A, LED

R15-2012-23-1060-WTLD

Industrial relay, 2 C/O contacts, Coil: 60VDC, Rated load: 10A, Diode+ LED

R15-2012-23-1110-WT

Industrial relay, 2 C/O contacts, Coil: 110DC, Rated load: 10A

R15-2012-23-1110-WTD

Industrial relay, 2 C/O contacts, Coil: 110VDC, Rated load: 10A, Diode

R15-2012-23-1110-WTL

Industrial relay, 2 C/O contacts, Coil: 110DC, Rated load: 10A, LED

R15-2012-23-1110-WTLD

Industrial relay, 2 C/O contacts, Coil:110VDC, Rated load: 10A, Diode+ LED

R15-2012-23-1120-WT

Industrial relay, 2 C/O contacts, Coil: 120VDC, Rated load: 10A

R15-2012-23-1120-WTD

Industrial relay, 2 C/O contacts, Coil: 120VDC, Rated load: 10A, Diode

R15-2012-23-1120-WTL

Industrial relay, 2 C/O contacts, Coil: 120VDC, Rated load: 10A, LED

R15-2012-23-1120-WTLD

Industrial relay, 2 C/O contacts, Coil:120VDC, Rated load: 10A, Diode+ LED

R15-2012-23-1220-WTD

Industrial relay, 2 C/O contacts, Coil: 220VDC, Rated load: 10A, Diode

R15-2012-23-1220-WTL

Industrial relay, 2 C/O contacts, Coil: 220VDC, Rated load: 10A, LED

R15-2012-23-1220-WTLD

Industrial relay, 2 C/O contacts, Coil:220VDC, Rated load: 10A, Diode+ LED

R15-2012-23-5006-WT

Industrial relay, 2 C/O contacts, Coil: 6VAC, Rated load: 10A

R15-2012-23-5006-WTL

Industrial relay, 2 C/O contacts, Coil: 6VAC, Rated load: 10A, LED

R15-2012-23-5006-WTLV

Industrial relay, 2 C/O contacts, Coil: 6VAC, Rated load: 10A, LED+Varistor

R15-2012-23-5006-WTV

Industrial relay, 2 C/O contacts, Coil: 6VAC, Rated load: 10A, Varistor

R15-2012-23-5012-WT

Industrial relay, 2 C/O contacts, Coil: 12VAC, Rated load: 10A

R15-2012-23-5012-WTL

Industrial relay, 2 C/O contacts, Coil: 12VAC, Rated load: 10A, LED

R15-2012-23-5012-WTLV

Industrial relay, 2 C/O contacts, Coil: 12VAC, Rated load: 10A, LED+Varistor

R15-2012-23-5012-WTV

Industrial relay, 2 C/O contacts, Coil: 12VAC, Rated load: 10A, Varistor

R15-2012-23-5024-WTL

Industrial relay, 2 C/O contacts, Coil: 24VAC, Rated load: 10A, LED

R15-2012-23-5024-WTLV

Industrial relay, 2 C/O contacts, Coil: 24VAC, Rated load: 10A, LED+Varistor

R15-2012-23-5024-WTV

Industrial relay, 2 C/O contacts, Coil: 24VAC, Rated load: 10A, Varistor

R15-2012-23-5048-WT

Industrial relay, 2 C/O contacts, Coil: 48VAC, Rated load: 10A

R15-2012-23-5048-WTL

Industrial relay, 2 C/O contacts, Coil: 48VAC, Rated load: 10A, LED

R15-2012-23-5048-WTLV

Industrial relay, 2 C/O contacts, Coil: 48VAC, Rated load: 10A, LED+Varistor

R15-2012-23-5048-WTV

Industrial relay, 2 C/O contacts, Coil: 48VAC, Rated load: 10A, Varistor

R15-2012-23-5060-WT

Industrial relay, 2 C/O contacts, Coil: 60VAC, Rated load: 10A

R15-2012-23-5060-WTL

Industrial relay, 2 C/O contacts, Coil: 60VAC, Rated load: 10A, LED

R15-2012-23-5060-WTLV

Industrial relay, 2 C/O contacts, Coil: 60VAC, Rated load: 10A, LED+Varistor

R15-2012-23-5060-WTV

Industrial relay, 2 C/O contacts, Coil: 60VAC, Rated load: 10A, Varistor

R15-2012-23-5110-WT

Industrial relay, 2 C/O contacts, Coil: 110AC, Rated load: 10A

R15-2012-23-5110-WTL

Industrial relay, 2 C/O contacts, Coil: 110AC, Rated load: 10A, LED

R15-2012-23-5110-WTLV

Industrial relay, 2 C/O contacts, Coil: 110AC, Rated load: 10A, LED+Varistor

R15-2012-23-5110-WTV

Industrial relay, 2 C/O contacts, Coil: 110AC, Rated load: 10A, Varistor

R15-2012-23-5120-WT

Industrial relay, 2 C/O contacts, Coil: 120VAC, Rated load: 10A

R15-2012-23-5120-WTLV

Industrial relay, 2 C/O contacts, Coil: 120VAC, Rated load: 10A, LED+Varistor

R15-2012-23-5120-WTV

Industrial relay, 2 C/O contacts, Coil: 120VAC, Rated load: 10A, Varistor

R15-2012-23-5230-WTL

Industrial relay, 2 C/O contacts, Coil: 230VAC, Rated load: 10A, LED

R15-2012-23-5230-WTLV

Industrial relay, 2 C/O contacts, Coil: 230VAC, Rated load: 10A, LED+Varistor

R15-2012-23-5230-WTV

Industrial relay, 2 C/O contacts, Coil: 230VAC, Rated load: 10A, Varistor

R15-2012-23-5240-WT

Industrial relay, 2 C/O contacts, Coil: 240VAC, Rated load: 10A

R15-2012-23-5240-WTL

Industrial relay, 2 C/O contacts, Coil: 240VAC, Rated load: 10A, LED

R15-2012-23-5240-WTLV

Industrial relay, 2 C/O contacts, Coil: 240VAC, Rated load: 10A, LED+Varistor

R15-2012-23-5240-WTV

Industrial relay, 2 C/O contacts, Coil: 240VAC, Rated load: 10A, Varistor

Sockets

GOP8

Plug-in socket for R15 2 C/O, for soldering

PZ8

Plug-in socket for R15 2 C/O

GZU8

Plug-in socket for R15 2 C/O

GZS8

Plug-in socket for R15 2 C/O

GZP8

Plug-in socket for R15 2 C/O (timer module can be mounted COM3)

GZ8

Plug-in socket for R15 2 C/O

Clips

GZ 1050

Spring clamp, for sockets GZ8, GZ11 and relays R15 2 C/O, R15 3 C/O

GZU 1052

Spring clamp, for sockets GZU8 GZU11, and relays R15 2 C/O, R15 3 C/O.

PZ11 0031

Spring clamp, for sockets PZ8, PZ11, PS11, and relay R15 2 C/O, R15 3 C/O

R159 1051 + R15 5922

Obejma sprężynowa, do GOP11, GOP8 + uchwyty obejmy R15 5922

Accessories

GZP-0035

Description plate for: GZP8, GZP11.

GZP-0054

Spring clamp, for sockets: GZP8, GZP11 and relays R15 2 C/O, R15 3 C/O.

R15-M203-A

Zaślepka eliminująca funkcję testowania i blokowania styków w przekaźnikach R15...-WT z cewkam...

R15-M203-D

Zaślepka eliminująca funkcję testowania i blokowania styków w przekaźnikach R15...-WT z cewkam...

R15-M404-A

Przycisk testujący eliminujący funkcję blokowania styków w przekaźnikach R15...-WT z cewkami A...

R15-M404-D

Przycisk testujący eliminujący funkcję blokowania styków w przekaźnikach R15...-WT z cewkami D...
