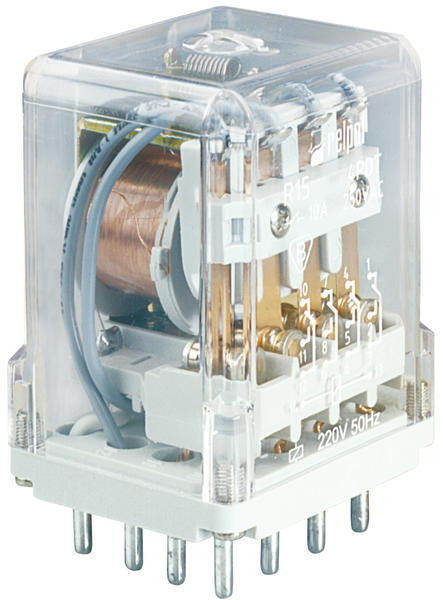

工业继电器R15 4 CO 订购编号:

点击这里发送询价

请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

品牌厂商（Manutacturer）*

公司名称*

产品名称（Product Name）*

联系人*

产品型号（Product Type）*

联系地址*

产品序列号（ID-Nr；Artikel-Nr）

联系电话*

产品描述（Voltage，Amp，Kw,Rpm）

传真*

需求数量（Quantity demanded）

联系邮箱*

附加信息，更具体要求

产品介绍
相关产品及附件
应用范围
标准及认证证书
技术资料

Contacts: 4 CO; rated load AC1 - 10 A/250 V AC; coils AC or DC; for plug-in sockets and PCB; mechanical indicator; test button; other equipment (option)

Contact data
Number and type of contacts		4 C/O
Contact material		AgCdO, AgCdO/Au 0,2 µm, AgCdO/Au 5 µm
Rated / max. switching voltage	AC	250 V / 440 V
Rated load (capacity)	AC1	10 A / 250 V AC 10 A / 277 V AC UL 508
Rated load (capacity)	DC1	10 A / 24 V DC
Rated current		10 A
Max. breaking capacity	AC1	2 500 VA
Coil data
Rated voltage	AC	6 ... 240 V 50 Hz, 60 Hz
Rated voltage	DC	6 ... 220 V
Rated power consumption	AC	2,8 VA 50 Hz 2,5 VA 60 Hz
Rated power consumption	DC	1,5 W
Insulation
Dielectric strength
- between coil and contacts- contact clearance- pole - pole		2 500 V AC
		1 500 V AC
		2 000 V AC
General data
Electrical life resistive	AC1	≥2 x 10⁵ 10 A, 250 V AC
Mechanical life (cycles)		≥2 x 10⁷
Ambient temperature operating	AC	-40...+55 ^oC
Ambient temperature operating	DC	-40...+70 ^oC
Sockets	GZU14, GZ14, GZ14Z, GOP14
Accessories for sockets	Spring wire clips

Products

R15-1014-23-1012

Industrial relay, 4 C/O contacts, Coil: 12VDC, Rated load: 10A

R15-1014-23-1024

Industrial relay, 4 C/O contacts, Coil: 24VDC, Rated load: 10A

R15-1014-23-1220

Industrial relay, 4 C/O contacts, Coil: 220VDC, Rated load: 10A

R15-1014-23-3024

Industrial relay, 4 C/O contacts, Coil: 24VAC, Rated load: 10A

R15-1014-23-3230

Industrial relay, 4 C/O contacts, Coil: 230VAC, Rated load: 10A

R15-1014-14-1220

Przekaźniki R15, 4 zestyki przełączne, 10 A, do lutowania, bez obudowy, IP 00. Wykonanie napię...

R15-1014-23-1006

Industrial relay, 4 C/O contacts, Coil: 6VDC, Rated load: 10A

R15-1014-23-1012-D

Industrial relay, 4 C/O contacts, Coil: 12VDC, Rated load: 10A, Diode

R15-1014-23-1012-KLD

Industrial relay, 4 C/O contacts, Coil: 12VDC, Rated load: 10A, test button+diode

R15-1014-23-1012-L

Industrial relay, 4 C/O contacts, Coil: 12VDC, Rated load: 10A, LED

R15-1014-23-1024-D

Industrial relay, 4 C/O contacts, Coil: 24VDC, Rated load: 10A, Diode

R15-1014-23-1024-K

Industrial relay, 4 C/O contacts, Coil: 24VDC, Rated load: 10A, test button

R15-1014-23-1024-KLD

Industrial relay, 4 C/O contacts, Coil: 24VDC, Rated load: 10A, test button+diode

R15-1014-23-1024-L

Industrial relay, 4 C/O contacts, Coil: 24VDC, Rated load: 10A, LED

R15-1014-23-1024-LD

Industrial relay, 4 C/O contacts, Coil: 24VDC, Rated load: 10A, LED+Diode

R15-1014-23-1042

Przekaźnik elektromagnetyczny, Styki: 4P, Cewka: 42VDC, Prąd obc: 10A

R15-1014-23-1048

Industrial relay, 4 C/O contacts, Coil: 48VDC, Rated load: 10A

R15-1014-23-1048-D

Industrial relay, 4 C/O contacts, Coil: 48VDC, Rated load: 10A, Diode

R15-1014-23-1048-K

Industrial relay, 4 C/O contacts, Coil: 48VDC, Rated load: 10A, test button

R15-1014-23-1048-L

Industrial relay, 4 C/O contacts, Coil: 48VDC, Rated load: 10A, LED

R15-1014-23-1048-LD

Industrial relay, 4 C/O contacts, Coil: 48VDC, Rated load: 10A, LED+Diode

R15-1014-23-1060

Industrial relay, 4 C/O contacts, Coil: 60VDC, Rated load: 10A

R15-1014-23-1060-D

Industrial relay, 4 C/O contacts, Coil: 60VDC, Rated load: 10A, Diode

R15-1014-23-1060-K

Industrial relay, 4 C/O contacts, Coil: 60VDC, Rated load: 10A, test button

R15-1014-23-1060-KLD

Industrial relay, 4 C/O contacts, Coil: 60VDC, Rated load: 10A, test button+diode

R15-1014-23-1060-L

Industrial relay, 4 C/O contacts, Coil: 60VDC, Rated load: 10A, LED

R15-1014-23-1110

Industrial relay, 4 C/O contacts, Coil: 110VDC, Rated load: 10A

R15-1014-23-1110-D

Industrial relay, 4 C/O contacts, Coil: 110VDC, Rated load: 10A, Diode

R15-1014-23-1110-K

Industrial relay, 4 C/O contacts, Coil: 110VDC, Rated load: 10A, test button

R15-1014-23-1110-KLD

Industrial relay, 4 C/O contacts, Coil: 110VDC, Rated load: 10A, test button+diode

R15-1014-23-1110-L

Industrial relay, 4 C/O contacts, Coil: 110VDC, Rated load: 10A, LED

R15-1014-23-1110-LD

Industrial relay, 4 C/O contacts, Coil: 110VDC, Rated load: 10A, LED+Diode

R15-1014-23-1120

Industrial relay, 4 C/O contacts, Coil: 120VDC, Rated load: 10A

R15-1014-23-1120-K

Industrial relay, 4 C/O contacts, Coil: 120VDC, Rated load: 10A, test button

R15-1014-23-1120-L

Industrial relay, 4 C/O contacts, Coil: 120VDC, Rated load: 10A, LED

R15-1014-23-1220-D

Industrial relay, 4 C/O contacts, Coil: 220VDC, Rated load: 10A, Diode

R15-1014-23-1220-K

Industrial relay, 4 C/O contacts, Coil: 220VDC, Rated load: 10A, test button

R15-1014-23-1220-KLD

Industrial relay, 4 C/O contacts, Coil: 220VDC, Rated load: 10A, test button+diode

R15-1014-23-1220-L

Industrial relay, 4 C/O contacts, Coil: 220VDC, Rated load: 10A, LED

R15-1014-23-1220-LD

Industrial relay, 4 C/O contacts, Coil: 220VDC, Rated load: 10A, LED+Diode

R15-1014-23-3006

Industrial relay, 4 C/O contacts, Coil: 6VAC, Rated load: 10A

R15-1014-23-3012

Industrial relay, 4 C/O contacts, Coil: 12AC, Rated load: 10A

R15-1014-23-3012-K

Industrial relay, 4 C/O contacts, Coil: 12AC, Rated load: 10A, test button

R15-1014-23-3024-K

Industrial relay, 4 C/O contacts, Coil: 21AC, Rated load: 10A, test button

R15-1014-23-3024-KL

Industrial relay, 4 C/O contacts, Coil: 21AC, Rated load: 10A, test button+LED

R15-1014-23-3024-L

Industrial relay, 4 C/O contacts, Coil: 21AC, Rated load: 10A, LED

R15-1014-23-3048

Industrial relay, 4 C/O contacts, Coil: 48VAC, Rated load: 10A

R15-1014-23-3048-K

Industrial relay, 4 C/O contacts, Coil: 48AC, Rated load: 10A, test button

R15-1014-23-3060

Industrial relay, 4 C/O contacts, Coil: 60VAC, Rated load: 10A

R15-1014-23-3110

Industrial relay, 4 C/O contacts, Coil: 110VAC, Rated load: 10A

R15-1014-23-3115

Industrial relay, 4 C/O contacts, Coil: 115VAC, Rated load: 10A

R15-1014-23-3120

Industrial relay, 4 C/O contacts, Coil: 120VAC, Rated load: 10A

R15-1014-23-3120-K

Industrial relay, 4 C/O contacts, Coil: 120AC, Rated load: 10A, test button

R15-1014-23-3120-KL

Industrial relay, 4 C/O contacts, Coil: 120AC, Rated load: 10A, test button+LED

R15-1014-23-3230-K

Industrial relay, 4 C/O contacts, Coil: 230AC, Rated load: 10A, test button

R15-1014-23-3230-KL

Industrial relay, 4 C/O contacts, Coil: 230AC, Rated load: 10A, test button+LED

R15-1014-23-3230-L

Industrial relay, 4 C/O contacts, Coil: 230AC, Rated load: 10A, LED

R15-1014-23-3240

Industrial relay, 4 C/O contacts, Coil: 240VAC, Rated load: 10A

R15-1014-23-3240-K

Industrial relay, 4 C/O contacts, Coil: 240AC, Rated load: 10A, test button

R15-1014-23-3240-KL

Industrial relay, 4 C/O contacts, Coil: 240AC, Rated load: 10A, test button+LED

Sockets

GZ14

Plug-in socket for R15 4 C/O

GZ14U

Plug-in socket for R15 4 C/O

GOP14

Gniazdo do R15 4P, do lutowania

GZ14Z

Gniazdo zatablicowe do przekaźnika R15 4P

Clips

GZ14 0737

Spring clamp, for sockets GZ14U, GZ14 and for relay R15 4 C/O.

R15 0736 + R15 5922

Obejma sprężynowa, do GOP14 + uchwyty obejmy R15 5922
