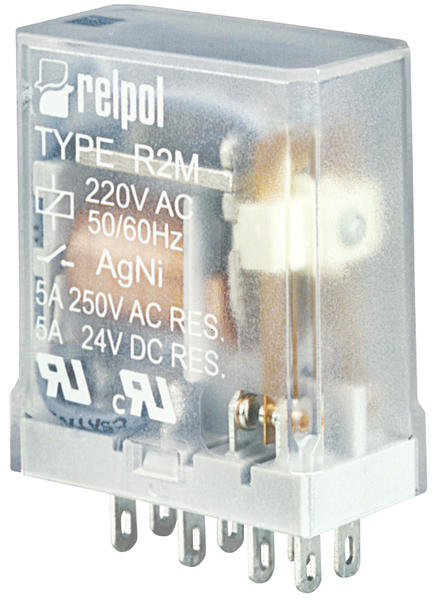

工业继电器R2M 订购编号:

点击这里发送询价

请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

品牌厂商（Manutacturer）*

公司名称*

产品名称（Product Name）*

联系人*

产品型号（Product Type）*

联系地址*

产品序列号（ID-Nr；Artikel-Nr）

联系电话*

产品描述（Voltage，Amp，Kw,Rpm）

传真*

需求数量（Quantity demanded）

联系邮箱*

附加信息，更具体要求

产品介绍
相关产品及附件
应用范围
标准及认证证书
技术资料

Contacts: 2 CO; rated load AC1 - 5 A/250 V AC; coils AC or DC; for plug-in sockets and PCB

Contact data
Number and type of contacts		2 C/O
Contact material		AgNi, AgNi/Au 0,2 µm, AgSnO₂
Rated / max. switching voltage	AC	250 V / 250 V
Rated load (capacity)	AC1	5 A / 250 V AC
Rated load (capacity)	DC1	5 A / 24 V DC
Rated current		5 A
Max. breaking capacity	AC1	1 250 VA
Coil data
Rated voltage	_{50/60 Hz} AC	6 ... 240 V
Rated voltage	DC	5 ... 110 V
Rated power consumption	AC	1,2 VA
Rated power consumption	DC	0,9 W
Insulation
Dielectric strength
- between coil and contacts - contact clearance - pole - pole		2 000 V AC
		1 000 V AC
		2 000 V AC
General data
Electrical life resistive	AC1	≥ 2 x 10⁵ 5 A, 250 V AC
Mechanical life (cycles)		≥ 10⁷
Ambient temperature operating		-40...+55 ^oC
Sockets	GZ2, S2M, G2M
Accessories for sockets	Spring wire clips

Products

R2M-2012-23-1012

Industrial relay, 2 C/O contacts, Coil: 12VDC, Rated load: 5A, width: 14mm

R2M-2012-23-1024

Industrial relay, 2 C/O contacts, Coil: 24VDC, Rated load: 5A, width: 14mm

R2M-2012-23-5024

Industrial relay, 2 C/O contacts, Coil: 24VAC, Rated load: 5A, width: 14mm

R2M-2012-23-5230

Industrial relay, 2 C/O contacts, Coil: 230VAC, Rated load: 5A, width: 14mm

R2M-2012-23-1006

Industrial relay, 2 C/O contacts, Coil: 6VDC, Rated load: 5A, width: 14mm

R2M-2012-23-1048

Industrial relay, 2 C/O contacts, Coil: 48VDC, Rated load: 5A, width: 14mm

R2M-2012-23-1060

Industrial relay, 2 C/O contacts, Coil: 60VDC, Rated load: 5A, width: 14mm

R2M-2012-23-1110

Industrial relay, 2 C/O contacts, Coil: 110VDC, Rated load: 5A, width: 14mm

R2M-2012-23-5006

Industrial relay, 2 C/O contacts, Coil: 6VAC, Rated load: 5A, width: 14mm

R2M-2012-23-5012

Industrial relay, 2 C/O contacts, Coil: 12VAC, Rated load: 5A, width: 14mm

R2M-2012-23-5050

Industrial relay, 2 C/O contacts, Coil: 50VAC, Rated load: 5A, width: 14mm

R2M-2012-23-5100

Industrial relay, 2 C/O contacts, Coil: 100VAC, Rated load: 5A, width: 14mm

R2M-2012-23-5110

Industrial relay, 2 C/O contacts, Coil: 110VAC, Rated load: 5A, width: 14mm

R2M-2012-23-5120

Industrial relay, 2 C/O contacts, Coil: 120VAC, Rated load: 5A, width: 14mm

R2M-2012-23-5240

Industrial relay, 2 C/O contacts, Coil: 240VAC, Rated load: 5A, width: 14mm

Sockets

G2M

Plug-in socket for R2M, for soldering.

GZ2

Plug-in socket for R2M, width 20 mm

S2M

Plug-in socket for R2M, for PCB.

Clips

GZ2 1060

Spring clamp, for socket GZ2 and relay R2M

G4 1050

Spring clamp, for sockets SU4/2D, SU4/2L, G4/2, SU4D, SU4L, G4, S2M, G2M
