工业继电器R20 订购编号:

点击这里发送询价

请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

品牌厂商（Manutacturer）*

公司名称*

产品名称（Product Name）*

联系人*

产品型号（Product Type）*

联系地址*

产品序列号（ID-Nr；Artikel-Nr）

联系电话*

产品描述（Voltage，Amp，Kw,Rpm）

传真*

需求数量（Quantity demanded）

联系邮箱*

附加信息，更具体要求

产品介绍
相关产品及附件
应用范围
标准及认证证书
技术资料

Contacts: 1NO, 2NO; rated load AC1 – 30 A/250 V AC or 25 A/250 V AC; coils AC or DC; for flat insert connectors

Contact data
Number and type of contacts		1 NO 2 NO
Contact material		AgSnO₂
Rated / max. switching voltage	AC	250 V / 440 V AC
Rated load (capacity)	AC1	1 NO: 30 A / 250 V AC
Rated load (capacity)		2 NO: 25 A / 250 V AC
Rated current		1 NO: 30 A
Max. breaking capacity	AC1	1 NO: 7 000 VA
Coil data
Rated voltage	_{50/60 Hz} AC	24 ... 230 V
Rated voltage	DC	12 ... 110 V
Rated power consumption	AC	1,7 VA 24,48 V 2,5 VA 115, 230 V
Rated power consumption	DC	1,9 W
Insulation
Dielectric strength
- between coil and contacts - contact clearance		4 000 V AC
- between coil and contacts - contact clearance		2 000 V AC
General data
Electrical life resistive	AC1	10⁵ 1 NO: 30 A, 250 V AC
Mechanical life (cycles)		> 10⁷
Ambient temperature operating		-25...+75 ^oC

Products

R20-3021-96-1012

Industrial relay, 1 N/O contact, Coil: 12VDC, Rated load: 30A, Faston 6,3x0,8mm

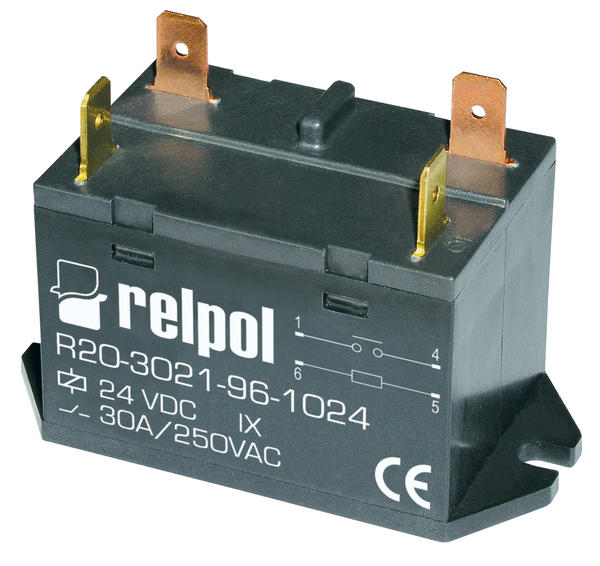

R20-3021-96-1024

Industrial relay, 1 N/O contact, Coil: 24VDC, Rated load: 30A, Faston 6,3x0,8mm

R20-3021-96-5024

Industrial relay, 1 N/O contact, Coil: 24VAC, Rated load: 30A, Faston 6,3x0,8mm

R20-3021-96-5230

Industrial relay, 1 N/O contact, Coil: 230VAC, Rated load: 30A, Faston 6,3x0,8mm

R20-3022-96-1024

Industrial relay, 2 N/O contacts, Coil: 24VDC, Rated load: 25A, Faston 6,3x0,8mm

R20-3022-96-5024

Industrial relay, 2 N/O contacts, Coil: 24VAC, Rated load: 30A, Faston 6,3x0,8mm

R20-3022-96-5230

Industrial relay, 2 N/O contacts, Coil: 230VAC, Rated load: 30A, Faston 6,3x0,8mm

R20-3021-96-1110

Industrial relay, 1 N/O contact, Coil: 110VDC, Rated load: 30A, Faston 6,3x0,8mm

R20-3021-96-5048

Industrial relay, 1 N/O contact, Coil: 48VAC, Rated load: 30A, Faston 6,3x0,8mm

R20-3021-96-5115

Industrial relay, 1 N/O contact, Coil: 115VAC, Rated load: 30A, Faston 6,3x0,8mm

R20-3022-96-1012

Industrial relay, 2 N/O contacts, Coil: 12VDC, Rated load: 25A, Faston 6,3x0,8mm

R20-3022-96-1110

Industrial relay, 2 N/O contacts, Coil: 110VDC, Rated load: 25A, Faston 6,3x0,8mm

R20-3022-96-5048

Industrial relay, 2 N/O contacts, Coil: 48VAC, Rated load: 30A, Faston 6,3x0,8mm

R20-3022-96-5115

Industrial relay, 2 N/O contacts, Coil: 115VAC, Rated load: 30A, Faston 6,3x0,8mm
