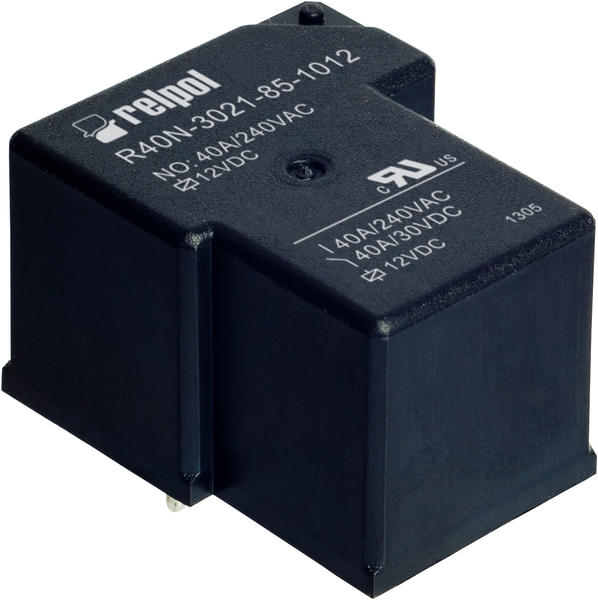

R40N
Contacts: 1CO, 1NO; rated load AC1 – (1NO) 40 A / 240 V AC; for PCB; AC coils - of up to 220 V AC, DC coils - of up to 110 V DC; High load 40 A


Contact data

Number and type of contacts



1 CO, 1 NO

Contact material



AgSnO2, AgCdO

Rated / max. switching voltage

AC

240 V / 300 V

Rated load (capacity)

AC1

1 NO: 40 A / 240 V AC

DC1

1 NO: 40 A / 30 V DC

Rated current



40 A

Max. breaking capacity

AC1

1 NO: 9 600 VA

Coil data

Rated voltage

AC

12 ... 220 V

DC

5 ... 110 V

Rated power consumption

AC

2,0 VA

DC

0,9 W

Insulation

Dielectric strength:

- between coil and contacts

4 000 V AC

- contact clearance

1 500 V AC

General data

Electrical life resistive

AC1

105  1 NO: 40 A, 240 V AC

Mechanical life (cycles)



107

Ambient temperature operating



-55...+100 oC
