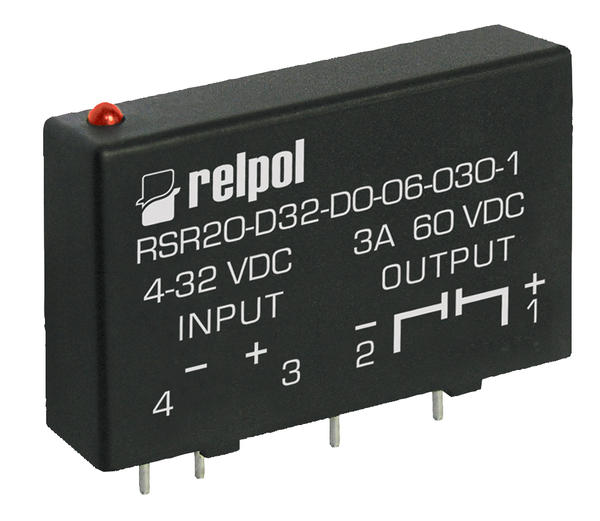

Solid State Relays PCB mounting RSR20
High dV/dt capability and high blocking voltage. Zero voltage turn-on, zero current turn-off. Built-in snubber network
High dV/dt capability and high blocking voltage. Zero voltage turn-on, zero current turn-off. Built-in snubber network
• Applications: lamp and motor load switching
• Mounting: relays RSR20 are designed for direct PCB mounting,single in line package
|
Output circuit |
|
|
Max. load current: |
3 A AC |
|
3 A DC |
|
|
Nominal load voltage: |
rest condition: 240 V AC |
|
rest condition: 380 V AC |
|
|
rest condition: 60 V DC |
|
|
Load voltage range: |
24…380 V AC |
|
48…415 V AC |
|
|
3…60 V DC |
|
Products
 |
RSR20-D32-A0-24-030-0
Solid State Relay, 1-poles for PCB, Rated load: 3A/240VAC, Input: 4...32 V DC
 |
RSR20-D32-A0-24-030-1
Solid State Relay, 1-poles for PCB, Rated load: 3A/240VAC, Input: 4...32 V DC
 |
RSR20-D32-A0-38-030-0
Solid State Relay, 1-poles for PCB, Rated load: 3A/380VAC, Input: 4...32 V DC
 |
RSR20-D32-A1-24-030-0
Solid State Relay, 1-poles for PCB, Rated load: 3A/240VAC, Input: 3...32 V DC
 |
RSR20-D32-A1-24-030-1
Solid State Relay, 1-poles for PCB, Rated load: 3A/240VAC, Input: 3...32 V DC
 |
RSR20-D32-A1-38-030-0
Solid State Relay, 1-poles for PCB, Rated load: 3A/380VAC, Input: 4...32 V DC
 |
RSR20-D32-D0-06-030-1
Solid State Relay, 1-poles for PCB, Rated load: 3A/60VDC, Input: 4...32 V DC
 |
RSR20-D32-D1-06-030-1
Solid State Relay, 1-poles for PCB, Rated load: 3A/60VDC, Input: 3...32 V DC
