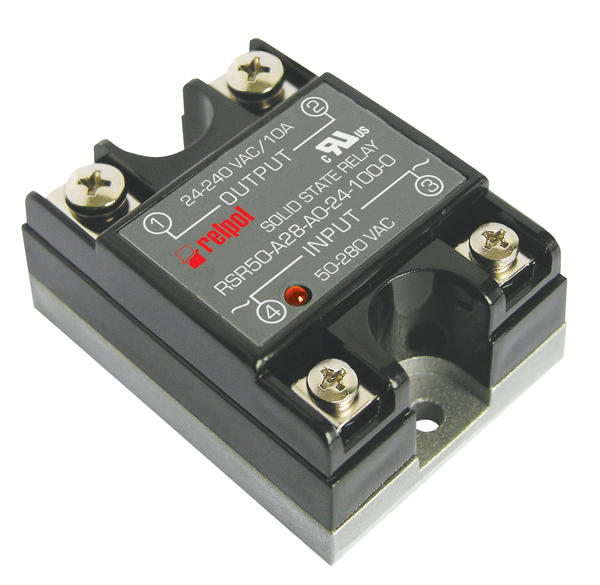

Solid State Relays for industrial automation RSR50
High dV/dt capability. Zero voltage turn-on, zero current turn-off. Built-in snubber network.
• Applications: lamp and motor load switching (high surge rating)
• Mounting: relays RSR50 are on panel mounting, using two M4 screws
• Accessories: protective covers
|
Output circuit |
|
|
Max. load current: |
10 A AC |
|
15 A AC |
|
|
25 A AC |
|
|
40 A AC |
|
|
Nominal load voltage: |
240 V AC |
|
480 V AC |
|
|
Load voltage range: |
24…280 V AC |
|
48…480 V AC |
|
Products
 |
RSR50-A28-A0-24-100-0
Solid State Relay, 1-poles, Rated load: 10A/380VAC, Input: 50...280 V AC
 |
RSR50-A28-A0-24-250-0
Solid State Relay, 1-poles, Rated load: 25A/380VAC, Input: 50...280 V AC
 |
RSR50-A28-A0-24-400-0
Solid State Relay, 1-poles, Rated load: 40A/380VAC, Input: 50...280 V AC
 |
RSR50-A28-A1-24-100-0
Solid State Relay, 1-poles, Rated load: 10A/380VAC, Input: 50...280 V AC
 |
RSR50-A28-A1-24-250-0
Solid State Relay, 1-poles, Rated load: 25A/380VAC, Input: 50...280 V AC
 |
RSR50-A28-A1-24-400-0
Solid State Relay, 1-poles, Rated load: 40A/380VAC, Input: 50...280 V AC
 |
RSR50-D32-A0-24-100-0
Solid State Relay, 1-poles, Rated load: 10A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A0-24-100-1
Solid State Relay, 1-poles, Rated load: 10A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A0-24-250-0
Solid State Relay, 1-poles, Rated load: 25A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A0-24-250-1
Solid State Relay, 1-poles, Rated load: 25A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A0-24-400-0
Solid State Relay, 1-poles, Rated load: 40A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A0-24-400-1
Solid State Relay, 1-poles, Rated load: 40A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A0-48-150-0
Solid State Relay, 1-poles, Rated load: 15A/380VAC, Input: 4...32 V DC
 |
RSR50-D32-A0-48-150-1
Solid State Relay, 1-poles, Rated load: 15A/380VAC, Input: 4...32 V DC
 |
RSR50-D32-A0-48-250-0
Solid State Relay, 1-poles, Rated load: 25A/380VAC, Input: 4...32 V DC
 |
RSR50-D32-A0-48-250-1
Solid State Relay, 1-poles, Rated load: 25A/380VAC, Input: 4...32 V DC
 |
RSR50-D32-A1-24-100-0
Solid State Relay, 1-poles, Rated load: 10A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A1-24-100-1
Solid State Relay, 1-poles, Rated load: 10A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A1-24-250-0
Solid State Relay, 1-poles, Rated load: 25A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A1-24-250-1
Solid State Relay, 1-poles, Rated load: 25A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A1-24-400-0
Solid State Relay, 1-poles, Rated load: 40A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A1-24-400-1
Solid State Relay, 1-poles, Rated load: 40A/240VAC, Input: 4...32 V DC
 |
RSR50-D32-A1-48-150-0
Solid State Relay, 1-poles, Rated load: 15A/380VAC, Input: 4...32 V DC
 |
RSR50-D32-A1-48-150-1
Solid State Relay, 1-poles, Rated load: 15A/380VAC, Input: 4...32 V DC
 |
RSR50-D32-A1-48-250-0
Solid State Relay, 1-poles, Rated load: 25A/380VAC, Input: 4...32 V DC
 |
RSR50-D32-A1-48-250-1
Solid State Relay, 1-poles, Rated load: 25A/380VAC, Input: 4...32 V DC
