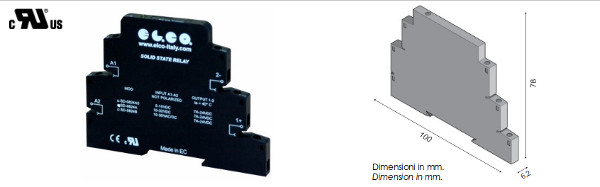

 SD / SA SERIES SOLID STATE RELAYS


- Non polarized input
- Led input voltage
- Rated operational current up to 8A DC or 6A AC
- Zero crossing commutation for models with AC voltage output or instantaneous for DC voltage output models
- Output voltage from 12 to 275 VAC or from 0 to 35V DC
- 2500V input-output insulation
- RC filter protection for AC models
- 20 pole comb for connection in parallel of solid state relays, can e connected up to 5 SSR
- Drawbar for Din bar

 Technical data (PDF Format)

 Models
SA-06240A
SA-06240A5
SA-06240B

SD-0824A
SD-0824A5
SD-0824B
