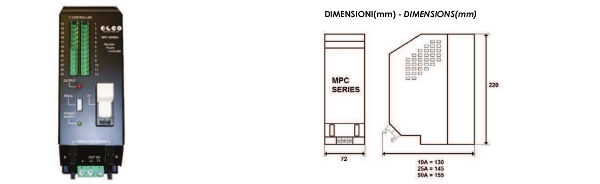

MODULAR POWER CONTROLLERS MPC SERIES 订购编号:
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！
| MODULAR POWER CONTROLLERS MPC SERIES |
 |
|
- Remote User Interface - Power supply 24V AC / DC or 100 ... 240V AC - Programmable PT100 and thermocouples input for temperature control - Digital input enable the modular power controller - PID control or ON / OFF programmable - Possibility to set one alarm output for no load or load in short (LbA-Loop break alarm) - Integrated fuse for output protection ( Not for models of 50A) - Serial port RS485 with MODBUS-RTU communication protocol - Possibility configuration of parameters by programming key or by PC with dedicated software - Din rail mounting - Output current 10A,25A,50A - Output Voltage from 48 to 450V AC |
| Technical data (PDF Format) |
| Models |
|
MPC-10450A - MPC-10450C MPC-25450A - MPC-25450C MPC-50450A - MPC-50450C |
