VEO Series
This newly developed monitoring relay series features a compact design, extensive capabilities and extremely low power consumption. Very small housing dimensions, an extended wide-range supply, an increased temperature range and the available push-in terminal set this compact industrial series apart.
| Type | Function | Datasheets | Images | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V2IM10AL10, V2IM10AL10P | Monitoring relay for AC and DC current up to 10A. Selfpowered from measured circuit. 1 CO |
 |
EN | DE |
 |
1 | ||||||||
| V2PF480Y/277VSY01, V2PF480Y/277VSY01P | Voltage monitoring 3-phase; Phase sequence monitoring; Phase failure monitoring; Asymmetry monitoring; 1 CO |
|
EN | DE |
|
1 | ||||||||

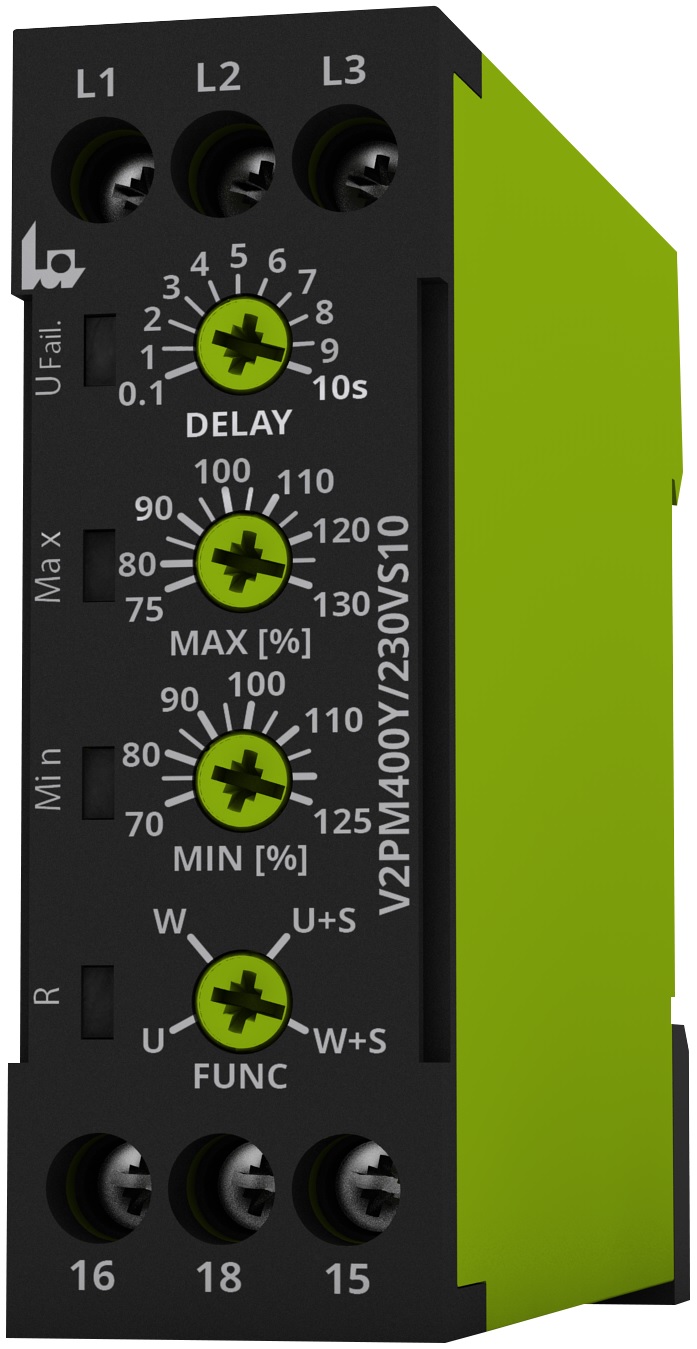

| V2PM400Y/230VS10, V2PM400Y/230VS10P | 3-phase voltage monitoring relay. Monitoring of phase loss, phase sequence, adjustable over and undervoltage. Selfpowered by measured voltage 3~ 380-415V. 1 CO |
|
EN | DE |
|
1 | ||||||||
| V2TF01, V2TF01P | Temperatur monitorig for use with up to 6 thermistors (PTC) 1 NO |
|
EN | DE |
|
1 | ||||||||
| V2UF230V10 | Continous voltage monitoring; 1-phase undervoltage; Detects voltage drop/short interruptions; 1 CO contact; Width 22,5 mm |
|
EN | DE |
|
1 | ||||||||
| V2UM230V10, V2UM230V10P | Voltage monitoring relay. Selfpowered by measured voltage 24VDC, 24VAC, 230VAC. 1 CO |
|
EN | DE |
|
1 | ||||||||
| V4IM100AL20, V4IM100AL20P | Monitoring relay for AC and DC current up to 100A. Galvanic separated measurment by integrated current transformer (put through type). 2 CO, universal control voltage 24...240V AC/DC |
|
EN | DE |
|
1 | ||||||||
| V4IM35AL20 | Monitoring relay for AC and DC current up to 35A. Galvanic separated measurment by integrated current transformer (put through type). 2 CO, universal control voltage 24...240V AC/DC |
|
EN | DE |
|
1 | ||||||||
| V4PF480Y/277VSYTK02, V4PF480Y/277VSYTK02P | Motor protection relay. Monitoring of phase loss, asymmetry and phase sequence. Temperature monitoring via PTC. Selfpowered by measured voltageg 3~ 208-480V. 2 CO |
|
EN | DE |
|
1 | ||||||||
