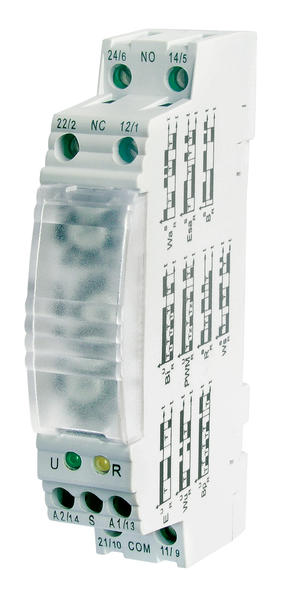

Time relay TR4N 1CO, 2CO
10-function electronic time relays in compact cover
|
Contact data |
||
|
Number and type of contacts |
1 C/O, 2 C/O |
|
|
Contact material |
AgNi |
|
|
Max. switching voltage |
AC |
440 V |
|
DC |
300 V |
|
|
Rated load |
AC1 |
16 A / 250 V AC; 8 A / 250 V AC |
|
Max. load |
AC1 |
1P - 4 000 VA; 2P - 2 000 VA |
|
Input control circuit |
||
|
Rated voltage |
50/60 Hz AC |
115 - 230 V |
|
AC: 50/60 Hz AC/DC |
12 - 24 V |
|
|
Insulation |
||
|
Dielectric strength: |
||
|
input - output |
2 500 V AC |
|
|
General data |
||
|
Ambient temperature operating |
-20...+55 oC |
|
|
Time module data |
||
|
Functions |
E, Wu, Bp, Bi, PWM, R, Ws, Wa, Esa, B |
|
|
Time intervals |
1s … 10 d |
|
|
Min. time of pulse duration |
AC: ≥ 25 ms, DC: ≥ 15 ms |
|
Products
 |
TR4N-230AC-11-M
Time relay, multifunction: Contacts: 1C/O, Rated load: 16A, Supply: 230VAC
 |
TR4N-24AC/DC-11-M
Time relay, multifunction: Contacts: 1C/O, Rated load: 16A, Supply: 24VAC/DC
 |
TR4N-115AC-11-M
Time relay, multifunction: Contacts: 1C/O, Rated load: 16A, Supply: 115VAC
 |
TR4N-12AC/DC-11-M
Time relay, multifunction: Contacts: 1C/O, Rated load: 16A, Supply: 12VDC
 |
TR4N-230AC-12-M
Time relay, multifunction: Contacts: 2C/O, Rated load: 8A, Supply: 230VAC
 |
TR4N-24AC/DC-12-M
Time relay, multifunction: Contacts: 2C/O, Rated load: 8A, Supply: 24VAC/DC
 |
TR4N-115AC-12-M
Time relay, multifunction: Contacts: 2C/O, Rated load: 8A, Supply: 115VAC
 |
TR4N-12AC/DC-12-M
Time relay, multifunction: Contacts: 2C/O, Rated load: 8A, Supply: 12VDC
