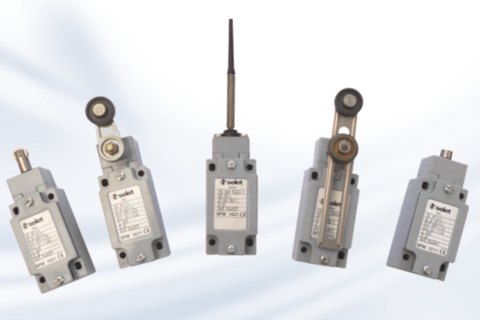

Limit switches with metal body, 40 mm width, suitable for harsh environments. Many heads availables for any sort of job: pistons, one way levers, levers with wheel, adaptable levers,
SFM10xx - 40 x 80 x 43 mm mechanical limit with plunger
- Metal housing
- Dimensions: 40 x 80 x 43 mm
- Head type: SFM101x = Plunger, SFM102x = Plunger with ball bearing, SFM103x = Roller plunger, SFM104x = Side plunger, SFM105x = Side plunger with vertical roller, SFM106x = Side plunger with horizontal roller
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM1012)
- Metal housing
- Dimensions: 40 x 80 x 43 mm
- Head type: SFM121x = Lever with plastic wheel, SFM122x = Lever with steel wheel, SFM123x = Lever with wheel and ball bearing
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM1212)
- Metal housing
- Dimensions: 40 x 80 x 43 mm
- Head type: SFM111x = One-way lever with plastic roller, SFM112x = One-way lever with steel roller, SFM113x = One-way lever with roller and ball bearing
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM1112)
- Metal housing
- Dimensions: 40 x 80 x 43 mm
- Head type: SFM131x = Adjustable lever with plastic wheel, SFM132x = Adjustable lever with steel wheel, SFM133x = Adjustable lever with wheel and ball bearing
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM1312)
- Metal housing
- Dimensions: 40 x 80 x 43 mm
- Head type: SFM141x = Flexible lever plastic, SFM142x = Flexible lever
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM1412)
- Metal housing
- Dimensions: 40 x 80 x 43 mm
- Head type: SFM151x = Lever with adjustable steel rod, SFM152x = Lever with adjustable plastic rod
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM1512)
- Metal housing
- Dimensions: 40 x 80 x 43 mm
- Head type: SFM161x = Multi-direction flexible rod, SFM162x = Multi-direction flexible plastic rod, SFM163x = Multi-direction flexible spring rod
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM1612)
Limit switches with metal body, 40 mm width, suitable for harsh environments. Many heads availables for any sort of job: pistons, one way levers, levers with wheel, adaptable levers,
SFM10xx - 40 x 80 x 43 mm mechanical limit with plunger
SFM12xx - 40 x 80 x 43 mm mechanical limit swithces with lever with wheel
SFM11xx - 40 x 80 x 43 mm mechanical limit switches with one-way lever with roller
SFM13xx - 40 x 80 x 43 mm mechanical limit swithces with adjustable lever with wheel
SFM14xx - 40 x 80 x 43 mm mechanical limit swithces with flexible lever
SFM15xx - 40 x 80 x 43 mm mechanical limit swithces with lever adjustable rod
SFM16xx - 40 x 80 x 43 mm mechanical limit swithces with multi-direction flexible lever
应用领域：
- 包装机械，例如食品饮料及医药机械
- 物流仓储和输送线，例如包裹和周转箱检测
- 机械制造OEM，机床、陶瓷机械
- 门禁系统和地铁闸机出入口，例如行人、箱包
- 快速消费品行业
- 生产线上食品饮料的检测
- 灌装线透明PET瓶检测
- 物流输送线上托盘和货叉定位
- 电子/汽车装配线零部件检测
- 包装/塑料/玻璃/陶瓷机械
-
在物体定位上的检测应用：
- 存储/输送技术
- 物料搬运技术
- 包装行业
- 交通运输行业
- 汽车行业
- 木材工业
