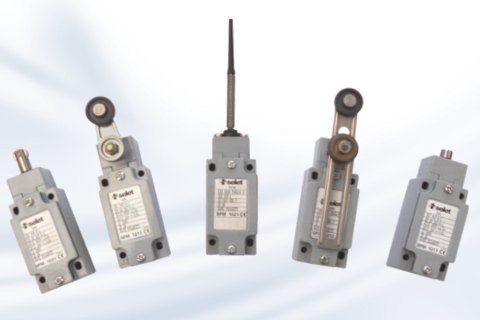

Limit switches with metal body, 66 mm width, suitable for harsh environments. Many heads availables for any sort of job: pistons, one way levers, levers with wheel, adaptable levers,
SFM20xx - 66 x 77 x 43 mm mechanical limit with plunger- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM201x = Plunger, SFM202x = Plunger with ball bearing, SFM203x = Roller plunger, SFM204x = Side plunger, SFM205x = Side plunger with vertical roller, SFM206x = Side plunger with horizontal roller
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2012)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM211x = One-way lever with plastic roller, SFM212x = One-way lever with steel roller, SFM213x = One-way lever with roller and ball bearing
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2112)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM221x = Lever with plastic wheel, SFM222x = Lever with steel wheel, SFM223x = Lever with wheel and ball bearing
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2212)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM231x = Adjustable lever with plastic wheel, SFM232x = Adjustable lever with steel wheel, SFM233x = Adjustable lever with wheel and ball bearing
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2312)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM241x = Flexible lever plastic, SFM242x = Flexible lever
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2412)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM251x = Lever with adjustable steel rod, SFM252x = Lever with adjustable plastic rod
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2512)
- Metal housing
- Dimensions: 66 x 77 x 43 mm
- Head type: SFM261x = Multi-direction flexible rod, SFM262x = Multi-direction flexible plastic rod, SFM263x = Multi-direction flexible spring rod
- Micro-switch: 1 = Snap action with forced breaking, 2 = Slow action with forced breaking (Example complete code: SFM2612)
Limit switches with metal body, 66 mm width, suitable for harsh environments. Many heads availables for any sort of job: pistons, one way levers, levers with wheel, adaptable levers,
SFM20xx - 66 x 77 x 43 mm mechanical limit with plunger
SFM21xx - 66 x 77 x 43 mm mechanical limit switches with one-way lever with roller
SFM22xx - 66 x 77 x 43 mm mechanical limit swithces with lever with wheel
SFM23xx - 66 x 77 x 43 mm mechanical limit swithces with adjustable lever with wheel
SFM24xx - 66 x 77 x 43 mm mechanical limit swithces with flexible lever
SFM25xx - 66 x 77 x 43 mm mechanical limit swithces with lever adjustable rod
SFM26xx - 66 x 77 x 43 mm mechanical limit swithces with multi-direction flexible lever
应用领域：
- 包装机械，例如食品饮料及医药机械
- 物流仓储和输送线，例如包裹和周转箱检测
- 机械制造OEM，机床、陶瓷机械
- 门禁系统和地铁闸机出入口，例如行人、箱包
- 快速消费品行业
- 生产线上食品饮料的检测
- 灌装线透明PET瓶检测
- 物流输送线上托盘和货叉定位
- 电子/汽车装配线零部件检测
- 包装/塑料/玻璃/陶瓷机械
-
在物体定位上的检测应用：
- 存储/输送技术
- 物料搬运技术
- 包装行业
- 交通运输行业
- 汽车行业
- 木材工业
