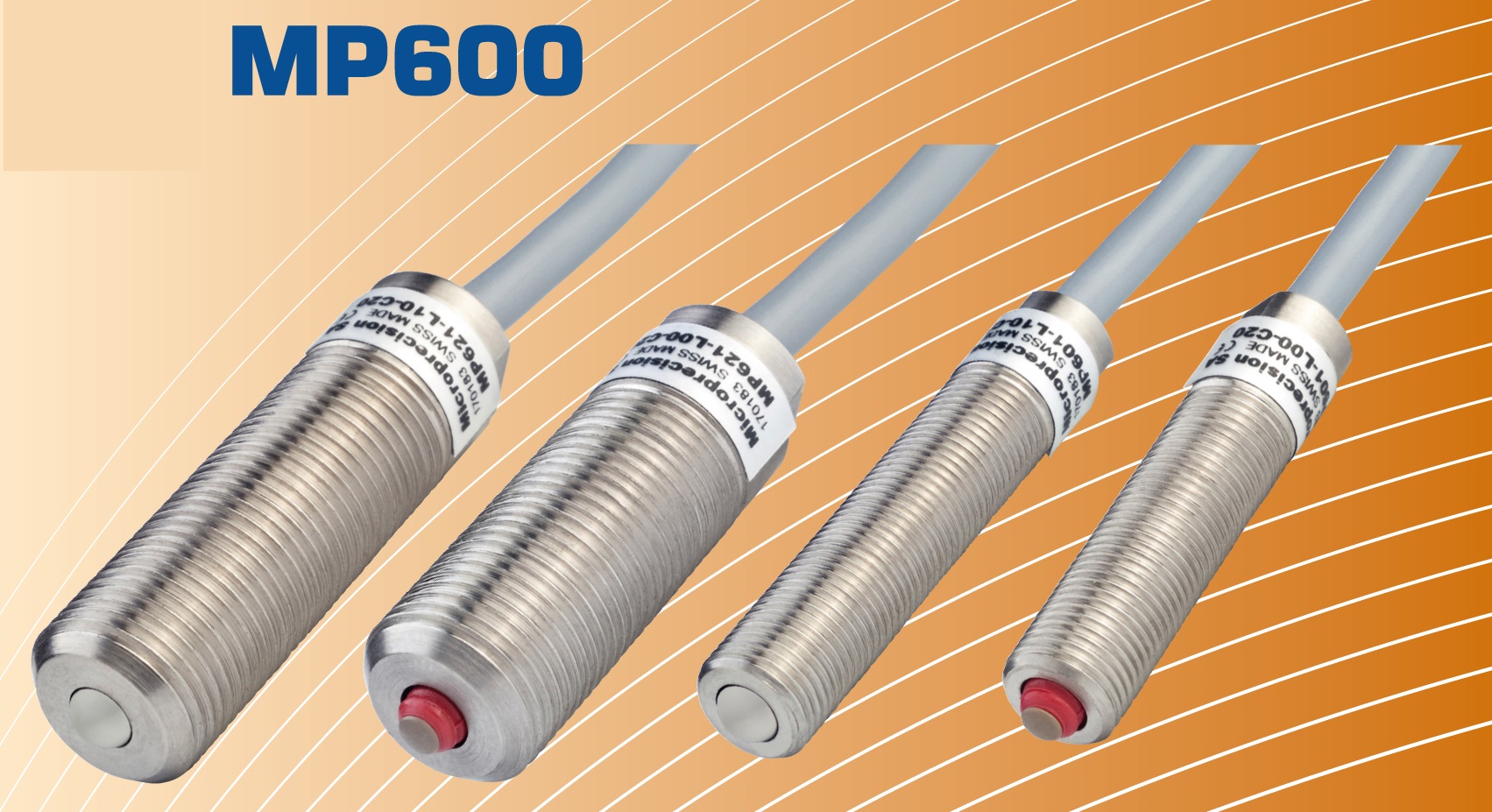

MP600 SERIES
|
|

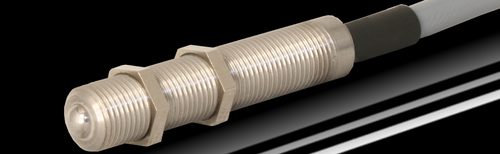

The MP600 Series are M8 and M12 cylindrical mechanical sensors.
They are designed to accurately detect two positions with a high degree of repeatability and no measurablehysteresis.
• No switching hysteresis |
|
Technical Characteristics |
| Degree of protection |
IP67 |
| Termination | Cable overmoulded / M12 connector |
| Power Rating | 30VDC / 20 - 200mA |
| Operating Force Range |
max. 1 N to open NC max. 1.2 N to close NO |
| Temperature |
-40°C to 130°C with SI cable -20°C to 105°C with PVC cable |
| Hysteresis | 0 mm |
| Repeatibility | < 5 µm |
| Pretravel |
0 mm for NC contact 0.3 mm - 1.5mm for NO contact |
| Overtravel |
2 mm after NC opening for pin version 1.7 mm after NC opening for ball version |

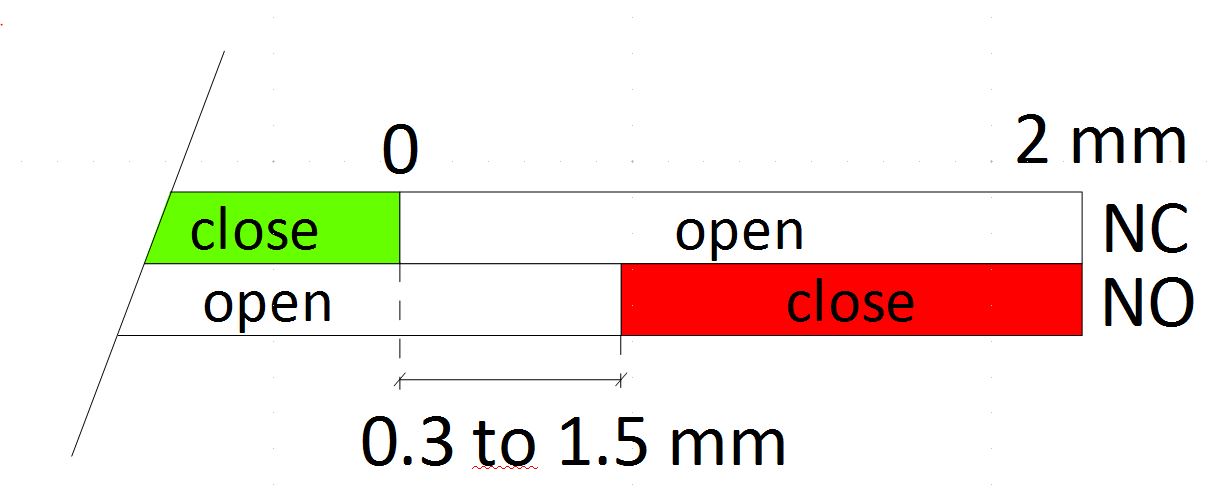

| Description |
The sensors are built with a NC and NO contact. There is no pre-travel of the pin plunger to open the NC contact.
The NO closes after a customized length of travel between 0.3 mm to 1.5 mm.
|
Configurations |
|

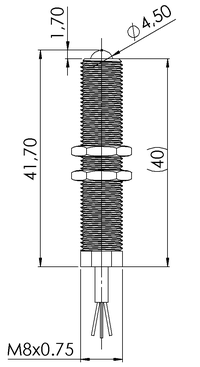

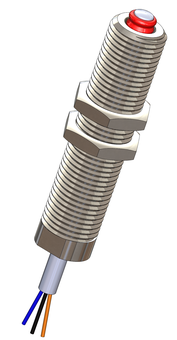

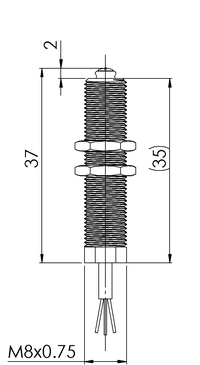

M8 with pin |
 |
 |

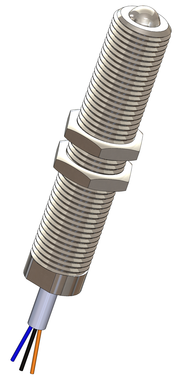

| M8 with ball |
 |
|

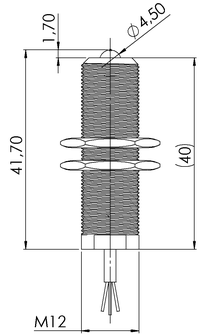

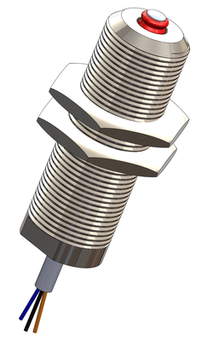

| M12 with pin |
 |
|

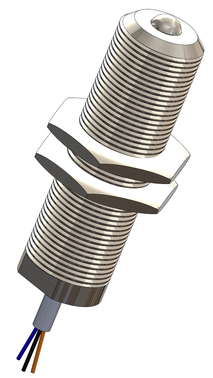

| M12 with ball |
 |
|
| Connection |

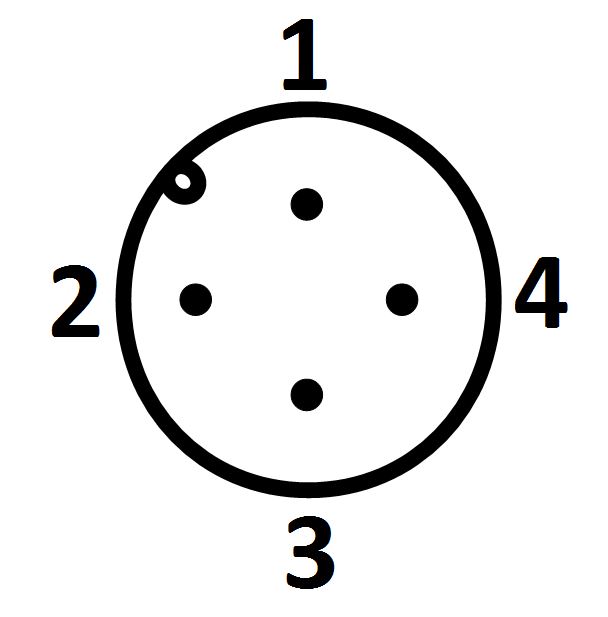

| Cable | Circular connector 4 pins | ||
|
COM NC NO |
Brown Black Blue |
1 2 4 |
 |
| Ordering information |
| MP6 | 0 | 0 | - L | 0 | 0 | -C | 1 | 0 | |
|
Housing 0 : M8 Metal IP67 2 : M12 Metal IP67 5 : M8 Metal IP50 7 : M12 Metal IP50 |
|||||||||
|
Contact Material 0 : Cu 1 : Gold |
|||||||||
|
Actuator 0 : Pin 1 : Ball |
|||||||||
|
Contact Distance 0 : 0.5mm Change Over 1 : 1.0mm Change Over 2 : 1.5mm Change Over 3 : NC only 4 : NO only 0.5mm 5 : NO only 1.0mm 6 : NO only 1.5mm |
|||||||||
|
Connection 1 : 0.5m PVC 2 : 1m PVC 3 : 2m PVC |
|||||||||
|
Connector 0 : Without 1 : Circular M12 - 4 pin |
